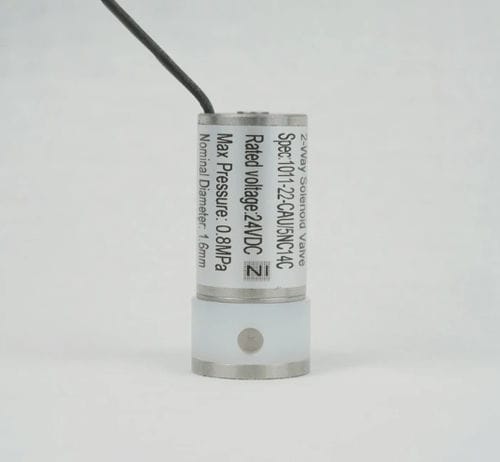

Medical solenoid valve 1011

proportionaldirect-operatedPTFE

1011-2 series solenoid valve is a series of diaphragm solenoid valve with 1.5mm orifice developed by Keyto independently. Its mainly function is switching on/off liquid path, to resist weak acid and bases, high temperature and high pressure resistance. The wetted material has multiple option types, depends on different reagents under different working condition. The life cycle can reach more than 2 million cycles. It’s a high precision, low cost and maintenance-free diaphragm solenoid valve. Feature Keyto proportional valve 1011 series has no dead volume inside the valve body. And different wetted materials (optional): It is also a high performance and strong solenoid product, strong acid and base corrosion resistance, high temperature and high pressure resistance. Orifice diameter 1.5mm. Flow capacity CV for liquid is about 0.03; flow rate is about 5 ml/ s. Dead volume No dead volume inside the valve body. Performance characteristics Long lifetime, high performance, strong acid and base corrosion resistance, high temperature and high pressure resistance.
