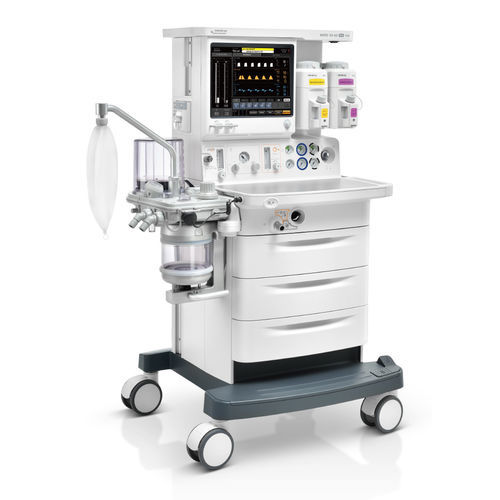

Veterinary anesthesia workstation WATO EX-65 Pro Vet

trolley-mountedwith respiratory monitoringwith ventilator

With a high resolution 15-inch capacitive touchscreen, users are able to view and adjust parameters as needed. The intuitive layout and simple flat-menu structure ensure all parameters are clearly displayed and only two steps are required to set the ventilation mode. Precise Electronic Flow Meters The digital gas mixer makes fresh gas flow settings easier and more precise. Virtual high- and low-flowmeters are shown separately, more accurately representing lower flow rates. Users can choose either total flow control mode or direct flow control mode out of different habits. Optimizer: The Optimizer calculates minimum patient O2 requirements and recommends fresh gas flow rates in comparison to current settings. This can reduce environmental pollution, as well as save money by reducing medical gas and anesthetic agent consumption. AA measurement: The new anesthetic agent calculation software enables users to monitor real-time anesthetic agent consumption. Comprehensive Modular Monitoring Plug-and-Play Multi-Gas modules, with Artema gas monitoring technology, provide comprehensive breath-by-breath analysis of O2, CO2, N2O and auto-detection of five anesthetic agents. Comprehensive Ventilation Modes A full range of ventilation modes to meet clinical requirements for various patients, enabling precise ventilation for critical cases. IT Solution Improves Efficiency Data from the WATO EX-65 Pro Vet can be transmitted to the BeneVision CMS Vet through the ePM 12M Vet patient monitor. Anesthesia information synchronizes between anesthesia machines and patient monitors. Integrated data and electronic record reduces staff workload and improves efficiency.
