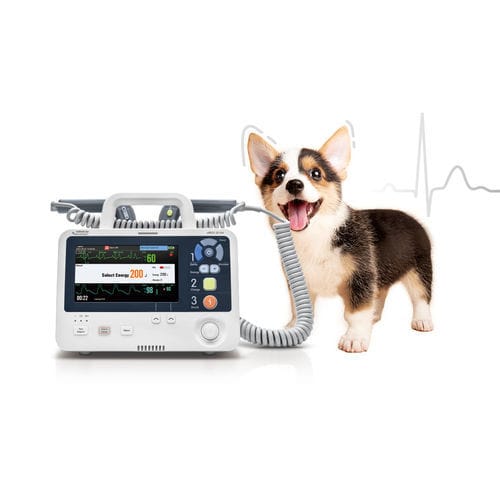

Manual external defibrillator uMED20 Vet

veterinarywith ECG monitorwith SpO2 monitor

Product
Veterinary defibrillator/monitor combining defibrillation, non‑invasive pacing and ECG monitoring in a single unit designed for emergency use in veterinary practice.

Fast Defibrillation
Equipped with QShockTM ultra-fast defibrillation technology. Power-on to ECG recovery time <7.5 seconds, reducing time-to-shock and supporting rapid response in critical arrhythmias.

Intuitive Panel

• Manual defibrillation guided by clear 1–2–3 steps for fast operation
• Color-coded controls and buttons for quick identification under stress

Single Operator Design

• Integrated external paddles with dedicated buttons for energy selection, charge and shock to allow a single clinician to operate
• Paddle design suitable for both large and small patients commonly encountered in veterinary settings

Higher Efficiency — Advanced Technology

• Biphasic defibrillation: biphasic waveform to optimize energy delivery and reduce myocardial injury risk
• Impedance compensation: automatic adjustment of peak current and discharge cycles according to patient impedance
• Patient contact indication: colored contact indicators on the main screen and external paddles to optimize electrode placement and energy selection

Non-invasive Pacing
Provides reliable transcutaneous pacing for life-threatening bradyarrhythmias. Supports both demand and fixed-rate pacing modes to address a range of clinical scenarios in veterinary patients.

Always on Standby
Comprehensive Auto-test

• Power-off test: daily and weekly tests available while powered off, including energy delivery verification
• Power-on test: full self-test executed at power-on; status indicator alerts if auto-test fails

Durable Battery

• Automatic battery capacity calibration for maintenance-free operation
• High-capacity battery for extended runtime and service life
• Designed for defibrillation applications (rated for ≥300 shocks @200J as indicated)

All-in-One Solution
Defibrillation, non-invasive pacing and monitoring combined to support cardiac emergency management in veterinary clinics.

Technical specifications

• Model name: uMED20 Vet
• Technology: QShockTM ultra-fast defibrillation
• Power-on to ECG recovery time: <7.5 seconds
• Defibrillation waveform: Biphasic
• Impedance compensation: automatic adjustment of peak current and discharge cycles
• Patient contact indication: colored indicators on main screen and external paddles
• User interface: intuitive panel with 1–2–3 manual steps and color-coded buttons
• External paddles: integrated, with energy selection, charge and shock buttons; suitable for large and small patients
• Pacing modes: Demand and Fixed-rate (non-invasive pacing)
• Auto-test: daily/weekly power-off tests and comprehensive power-on test with status indicator
• Battery: automatic capacity calibration, maintenance free, large capacity; rated for ≥300 shocks @200J (captioned specification)
• Intended functions: Defibrillation, Pacing, Monitoring
