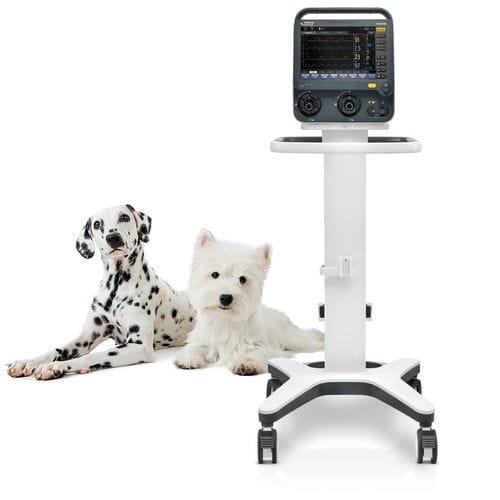

Veterinary ventilator SV300 Vet

non-invasivemulti-modeinvasive

Overview
SV300 Vet is a veterinary ventilator designed for ICU-level support. It is simple to configure, easy to operate and suitable for invasive and non-invasive ventilation across acuity levels. The device operates independent of a central gas supply using a built-in turbine and features a 12-inch adjustable touchscreen for clinical use.

Key benefits

• Compact design appropriate for acute and ICU settings.
• Flexible ventilation modes adaptable to different patient conditions.
• Intuitive user interface to streamline clinical workflow.

Advanced synchronization technology
IntelliCycle Pro automatically adapts to the patient breathing waveform to improve patient–ventilator synchrony.

• Adjusts inspiratory and expiratory trigger sensitivity to reduce patient work of breathing.
• Prevents pressure overshoot and flow starvation.

Lung protection functions
ICU-grade functions support lung-protective ventilation strategies.

• SI/APRV modes optimized for lung recruitment and protective strategies.

Easy-to-use weaning tools
Standardized weaning protocols with continuous monitoring and prompts reduce clinician workload while supporting safety.

• Weaning assist tools: RSBI, NIF, P0.1.

Operate with ease during your daily routine

• 12-inch touch screen with adjustable angle for optimal viewing.
• Setting range indicator and setting summary for quick overview of parameters.

PulmoSight and monitoring
PulmoSight provides graphical displays of resistance, compliance and breathing state with alerts for abnormalities.

• Graphical resistance and compliance trends.
• Automatic prompts for abnormal compliance or resistance.

Alarms and indicators

• Alarm range indicator for rapid assessment.
• Active color-coded alarms for priority identification.
• Auto alarm limits to enhance patient safety.

Hardware and platform
Industrial hardware platform designed for future upgrades and medical compliance. Long-lasting built-in turbine and detachable valves reduce maintenance and cross-contamination risk.

• Built-in turbine delivering up to 210 L/min of flow.
• Two detachable valves (inspiration and expiration) designed per ISO 80601-2-12; inspiration valve supports autoclaving.

Technical specifications

• Model: SV300 Vet
• Device type: Veterinary ventilator for invasive and non-invasive ventilation
• Ventilation modes: Extensive ICU-grade modes suitable across acuity levels
• Synchronization: IntelliCycle Pro automatic waveform adaptation
• Weaning tools: RSBI, NIF, P0.1 monitoring and prompts
• Display: 12-inch touch screen, adjustable viewing angle
• Monitoring: PulmoSight for resistance, compliance and breathing state
• Alarms: Range indicator, color-coded active alarms, auto limits
• Gas supply: Operates independent of central gas supply (built-in turbine)
• Turbine: Built-in, up to 210 L/min
• Valves: Detachable inspiration and expiration valves; inspiration valve autoclave-compatible
• Standards: Design aligned with ISO 80601-2-12
