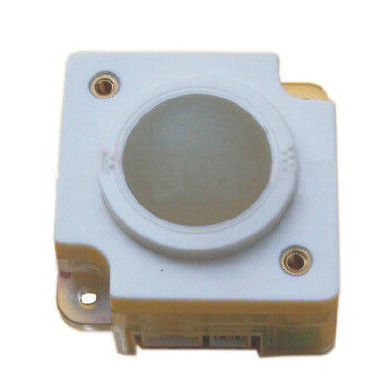

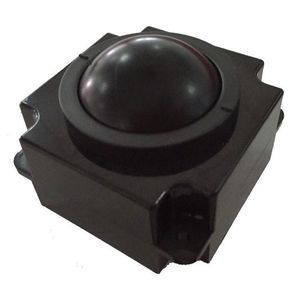

Medical device trackball P-25-OTB

for multiparametric monitorsretroilluminated

Product Details
Place of Origin: Made in China
Brand: OEM
Certifications: CE, FCC, ROHS
Model Number: P-25-OTB

Key Specifications

• Ball diameter: 25 mm (other sizes available)
• Resolution: 400–800 DPI (optionally adjustable 400–1200 DPI)
• Interface: USB (PS/2 or custom options available)
• Protection level: IP65 (static)
• ESD protection: integrated
• Mounting: with fixing holes
• Plug & Play: yes

Main Features

• 25 mm roller/trackball module designed for integration into medical mice and healthcare devices
• Semi-transparent ball; optional backlit version for low-light environments
• Standard USB interface; PS/2 and custom cable options available for OEM integration
• Integrated ESD protection suitable for clinical environments
• Sealed construction (IP65 static) against dust and splashes

Electrical & EMC
Power supply: 5 V DC ±10%
Power consumption: 1.00 W (dynamic); 0.2 W (static)
EMC standard: EN55022(B)


Operating Environment
Operating temperature: -10 °C to +60 °C
Storage temperature: -20 °C to +70 °C
Operating humidity: 30–90% RH
Atmospheric pressure: 60–106 kPa
Reliability: MTBF > 20,000 h; MTTR < 30 min

Applications

• Medical equipment (patient monitors, diagnostic consoles, clinical workstations)
• Audio and music equipment
• Other industrial and military applications

Packaging & Logistics

• Minimum order quantity: 1 pc
• Price: negotiable
• Packaging: inner box + outer carton
• Delivery time: 1–2 weeks
• Payment terms: TT, PayPal, Western Union
• Supply ability: 3000 pcs per month

Options & Ordering

• Colors: semi-transparent, black (backlight option)
• Ball weight: customizable on request
• Resolution: fixed 400–800 DPI or adjustable 400–1200 DPI
• Interfaces: USB, PS/2 or custom interfaces
• Mechanical and cable configurations can be customized for OEM integration
