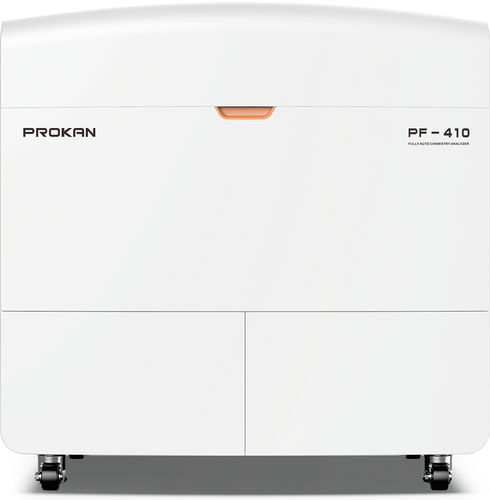

Automatic clinical chemistry analyzer PF-410
for clinical diagnosticfloor-standingrandom access

automatic clinical chemistry analyzer
automatic clinical chemistry analyzer
Add to favorites
Compare this product


Characteristics

Operation
automatic
Applications
for clinical diagnostic
Configuration
floor-standing
Technology
random access, with ISE

Description

Fully automated, random access, discrete, floor-standing chemistry analyzer for clinical diagnostics with STAT priority 480T/H 90Reagent positions 120Sample positions 160reaction cuvettes Cost-efficient: 1. 90 reagent positions, 15mL/40mL bottle types, STAT support 2. Continuous reagent loading and uploading 3. 20-350μl sample sampling in step 1μl 4. 120 sample positions, 2-35μl sample sampling in step 0.1μl 5. 160 reaction resusable UV penetrable cuvettes 6. Minimum 120μl reaction volume Accurate and reliable: 1. 24h cooling system for keep reagent in 2-8℃ 2. Direct solid-heating system ensure 37±0.1℃ for stable reaction 3. Reversed and grating photometry system with 8/16 wavelengths(300-800nm) 4. Liquid level detection, probe level tracing 5. Anti-clot & bubble detection for reagent and sample probes 6. Probe and washing arm collision protection Specifications Throughput: constant 480T/H, up to 700T/H with ISE (potassium/sodium/chloride) Principle: photometry, turbidimetry Method: end point, fixed-time(two-point), kinetic(rate) Light source: professional-grade halogen lamp Data process: multi-item automatic calibration, test combination, auto dirty cup mark skip, auto blank detection and deduction, user operation authorization management, bi-LIS interface Operating system: Windows7/8/10, w/touch screen, barcode reader optional report templates: w/adequate templates on choice, customized format support as well
