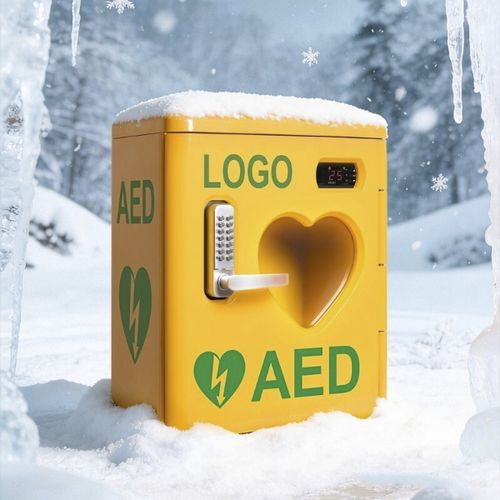

Warming cabinet WAP-P16

for defibrillatorwall-mountedplastic

Product overview
- Wall-mounted outdoor cabinet designed for AED storage and protection, model WAP-P16. Constructed from high-impact plastic with integrated heating to maintain operational temperature for the device and accessories.
- IP55 waterproof rating for dust and water jets. Certified CE and RoHS.

Features

• High strength, impact-resistant plastic
• Non-toxic and odorless materials
• Good toughness and thermal stability
• Cold- and heat-resistant design

HEATING SYSTEM
Operating voltage: 120-240V AC/DC (min. 110V, max. 265V)
Heating capacity: 50W
Heater element: PTC resistor with temperature limiting
Surface temperature: <80°C (except upper protective grille)
Operating / storage temperature: -20 to +70℃ / -45 to +70℃
Protection class: IP20 / Class II (double insulated)
Approvals: VDE + UL File No. E15057

TEMPERATURE CONTROL SYSTEM
Supply power: 100~240V AC 50/60Hz
Temperature sensor: NTC, 2 m (L)
Display range: -50 ~ 150℃
Set temperature range: -50 ~ 120℃
Controller dimension: 84 x 36 x 30 mm
Ambient temperature / humidity: -10℃ ~ 60℃ / 20% ~ 90%
Relay output contact capacity: Heater: N.O. 10A / 250V AC

Other product information
- Function: AED storage (wall-mounted, outdoor)
- Material: Plastic
- Color: Yellow (standard); customizable colors available
- Size: H530 x W420 x D260 mm (custom sizes available)
- Certifications: CE, RoHS; waterproof rating IP55
- Service & Warranty: OEM & ODM available; 2-year warranty for AED cabinets

Technical specifications

• Brand: WAP
• Model: WAP-P16
• Material: Plastic
• Color: Yellow (custom colors available)
• Standard size: H530 x W420 x D260 mm (customizable)
• Function: AED storage (outdoor, wall-mounted)
• Waterproof rating: IP55
• Heating system voltage: 120-240V AC/DC (min.110V, max.265V)
• Heating capacity: 50W
• Heater element: PTC resistor (temperature limiting)
• Surface temp (max): <80°C (except upper protective grille)
• Operating temperature: -20 to +70℃; Storage: -45 to +70℃
• Protection class (heater): IP20 / Class II (double insulated)
• Approvals: VDE + UL File No. E15057
• Temperature control supply: 100~240V AC 50/60Hz
• Temperature sensor: NTC, 2 m (L)
• Display range: -50 ~ 150℃
• Set range: -50 ~ 120℃
• Controller dimension: 84 x 36 x 30 mm
• Ambient temp/humidity (controller): -10℃ ~ 60℃ / 20% ~ 90%
• Relay output capacity: Heater N.O. 10A / 250V AC
• OEM & ODM: Available (size, color, logo)
• Warranty: 2 years
