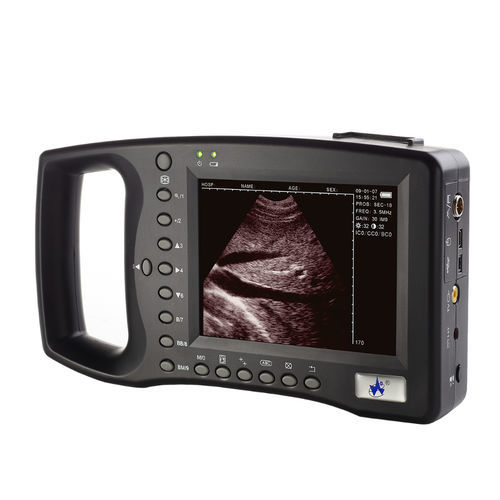

Hand-held ultrasound system WED-2000Afor multipurpose ultrasound imagingB/W
Add to favorites
Compare this product
Characteristics
- Ergonomics
- hand-held
- Application
- for multipurpose ultrasound imaging
- Imaging modes
- B/W
- Probe frequency
2.5 MHz, 3.5 MHz, 5 MHz
Description
Palmsize Full-digital Ultrasound Diagnostic System
For clinical ultrasonography of liver, gallbladder, renal, pancreatic, bladder, uterus and accessory, pregnancy.
Scanning Model
Mechanical Sector Scanning
Display Mode
B、B+B、B+M、M
Measurement
Distance, Perimeter, Area, Volume, HR, GA, EDD, FW.
Battery Capacity
≥2200mAh
Image Processing
Smoothing, Pseudo-color and Histogram
Image Storage
≥128 frames
Text
Name, Age, Gender, Date, Time, Hospital, Langu age, Full-screen
character editing
· Probe: width frequency conversion; unique waterproof design; it can be applied to severe environments.
· Working Mode: Combined power supply mode of AC adapter and built-in Li-ion chargeable battery, 3 battery charging
modes and the specialized brownout mode enables more lasting battery operation.·
· Technology: WED-2000A adopts technologies such as microcomputer control and digital scanning converter (DSC), large
dynamic broadband low-noise preamplifier, logarithmic compression, dynamic filtration, edge enhancement etc. to ensure
legible, stable and high resolution images
