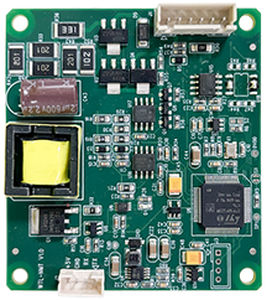

Neuromuscular blockade module for patient monitor M901 NMT

NMTneuromuscular transmissionanesthesia

Product overview
The NMT (Neuromuscular Transmission) module M901 NMT provides multi‑mode, high‑precision stimulation and objective quantification of neuromuscular blockade for perioperative monitoring. It supports ST, TOF, DBS, PTC and TET modes and is suitable for adult and pediatric patients. The module integrates with anesthesia monitoring workflows to assist intraoperative neuromuscular management and postoperative recovery assessment, helping to optimize neuromuscular blocker dosing and reduce the risk of residual paralysis.

Technical specifications

• Stimulation modes: ST (0.1 Hz), ST (1 Hz), TOF, DBS3.2, DBS3.3, TET, PTC
• Physical dimensions: 80 mm × 65 mm × 1.6 mm
• Voltage: DC 5 V ±10%
• Power consumption: ≤2 W (typical at 5 V ±10%)
• Communication: 5 V TTL‑level UART interface
• Operating conditions: 0°C to 70°C; humidity 15%–95% non‑condensing
• Storage conditions: -40°C to 70°C; humidity 15%–95% non‑condensing

Key features

• Multi‑mode neurostimulation for comprehensive NMT assessment
• Real‑time quantification of muscle relaxation to support dosing decisions
• Compatibility with continuous intraoperative and postoperative monitoring
