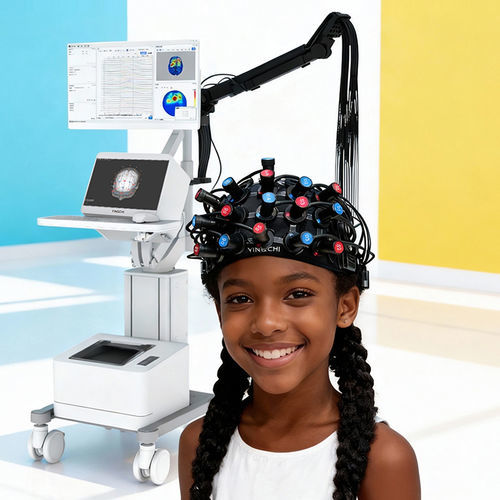

Functional neuroimaging near infrared spectroscopy system NIRS Ultra | NIRS Revo | Actus Pro | Actus Lab | HemoX Pro | HemoX Lab

YINGCHI fNIRS — “Your Portable Optical MRI”
Near-Infrared Functional Brain Imaging System (fNIRS) infers neural activity by measuring hemodynamic changes in the brain. With simple operation, low cost, strong resistance to interference, and high compatibility, it is ideal for brain and cognitive neuroscience research in conventional laboratories, naturalistic environments, as well as for ward-based assessments and clinical brain function evaluation.


Multi-level quality control across hardware and software ensures signal accuracy and reliable mapping of brain activity.


Features of YINGCHI fNIRS

Up to 224 Channels

Configurations support up to 64 sources × 64 detectors with flexible layout for whole-brain coverage.

Real-Time Spectral Monitoring

Physiological “fingerprints” of fNIRS—cardiac (~1 Hz) and respiratory (~0.25 Hz) rhythms—are verified in the frequency domain to support robust assessment of signal quality.

Short-Distance Channels

Removes superficial interference to recover clean cortical signals.

Concurrent Multimodal Physiological Recording

Respiration, pulse oximetry (PPG), heart rate variability (HRV), oxygen saturation (SpO₂), temperature, galvanic skin response (GSR), and bipolar signals such as EMG and ECG are recorded to interpret brain function within the context of the whole physiological system.

APD Detectors

Avalanche photodiodes enable stable detection of weak hemodynamic signals, ensuring reliable data from deep cortical regions and low-activation tasks.

Dual-head Optode Design

Each optode features dual contact points to efficiently separate hair and ensure good scalp contact, reducing preparation time.

Adaptive Three-Stage Optical Probes

Automatically adapt to different hair conditions, ensuring signal quality independent of hair density.

Accelerometer

>9 axes (3 linear acceleration 3 gyroscope 3 magnetometer).
>Capture head movement to enhance fNIRS data validity, especially for research in naturalistic neuroscience and clinical populations.

3D Diffuse Optical Tomography (DOT)

Reconstructs three-dimensional hemodynamic changes across different cortical depths.

Lab Streaming Layer

Provides high-accuracy temporal alignment for multimodal brain imaging and brain–computer interface applications.

Acquisition & Analysis Software

User-friendly operation with real-time visualization, one-click reporting, and efficient data management.

Scientifically Designed Paradigms

Comes with built-in classical paradigms and also supports parallel testing and adaptive task difficulty, allowing flexible customization for diverse experimental needs.

Open-Source Software Compatibility

Data can be directly accessed and analyzed using third-party open-source platforms.


YINGCHI: Building a Smart, Integrated Brain Science Platform

YINGCHI fNIRS EEG: Complementary Signals

Synchronized acquisition enables dual-dimensional “electrical–hemodynamic” monitoring, providing complementary insights into brain function.

YINGCHI fNIRS TMS: Causal Research

Noninvasive stimulation techniques combined with real-time hemodynamic recording, forming a “stimulation–response–feedback” closed loop.

YINGCHI fNIRS psychological/speed–agility training: Integration of Psychology and Behavior

Building a Full-Link “Brain–Mind–Behavior” Evidence Chain.


Technical Applications

Brain–Computer Interface (BCI) and Real-Time Neurofeedback

By integrating neurofeedback algorithms with behavioral task modules, the system supports BCI research applications such as motor imagery training, attention modulation, and emotion regulation, demonstrating broad potential in neurorehabilitation and optimization of human–machine interaction.

Hyperscanning and Social Interaction Research

YINGCHI fNIRS supports synchronized data acquisition across multiple devices and can be extended to dual- or multi-participant hyperscanning experiments, enabling investigation of brain-to-brain coupling and neural synchronization mechanisms underlying social cooperation and competition.

Cognitive Neuroscience

YINGCHI fNIRS can be used to investigate the neural mechanisms underlying higher-order cognitive processes, including attention, working memory, language processing, and executive functions.

Educational and Developmental Psychology

YINGCHI fNIRS provides a safe and non-invasive method for assessing brain function in children and adolescents, enabling the study of learning, emotion regulation, and neurodevelopmental processes.

Clinical Brain Function Monitoring

YINGCHI fNIRS Provides non-invasive, real-time monitoring of brain activity, enabling dynamic tracking of functional recovery.

Clinical Neurodevelopment and Behavioral Assessment

YINGCHI fNIRS evaluates attention, emotion regulation, and social cognition in children and adolescents, providing support for interventions in neurodevelopmental disorders such as ADHD and ASD.
