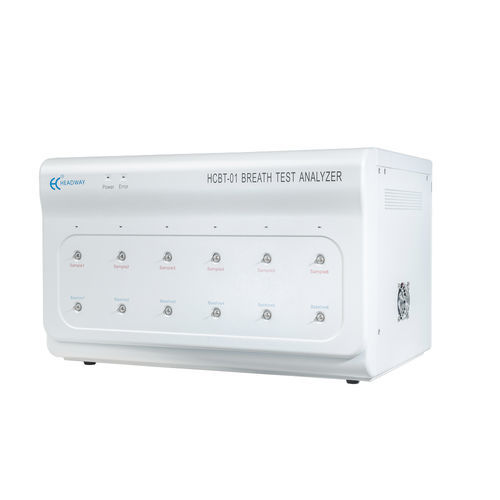

Helicobacter pylori breath analysis system HCBT-01

The innovative use of infrared spectrometer greatly shortens the detection time, and significantly improves the accuracy of the diagnostic results. With these benefits, HCBT-01 is highly popular among patients and medical institutions. By utilizing the slight differences between 13CO2 and 12CO2 in the absorption peak of infrared light, the HCBT-01 can detect whether the subjects have H. Pylori infection. The invention of the 13C-UBT System has dramatically improved the safety and convenience of UBT. 13C-UBT System is well-received among patients and medical institutions. Precision optics system: Narrow-band optical bandpass filter + sapphire window + optical lenses. Stable infrared source: Steady-state blackbody radiation source with gold-plated reflector, with a working temperature of 950℃. Accurate information acquisition: Bandpass filter + analog-to-digital converter + fast Fourier transform software. Temperature regulation system: PDI control mode for electric heating element and Peltier refrigeration element. Stable temperature control system: PID control with electric heating module and Peltier cooling module. Stable sampling system: Cylinder-type sampling system controlled by miniature electromagnetic air valve and precision stepper motor. Precision detector: PbSe Non-Cooled Photoconductive IR Detector. CO2 has several characteristic absorption peaks in infrared band and there is a slight difference between the absorption peak positions of 13CO2 and 12CO2.
