Implant osteotomy burr OR-4827

for dental implantologysurgerydental

Overview
The Trimmer Kit 2 is a surgical instrument set designed for controlled bone harvesting, implant extraction and soft tissue management in oral and maxillofacial procedures. It is suitable for tooth extractions with immediate implantation and for harvesting autologous bone to support osseointegration.

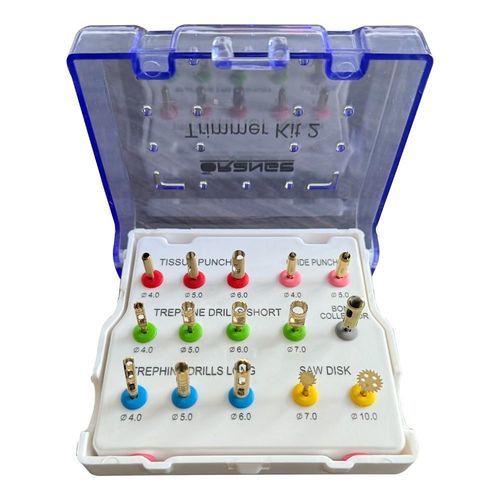

Contents of the Trimmer Kit

• 3 tissue punches: Ø4.0 mm, Ø5.0 mm, Ø6.0 mm
• 2 guide punches: Ø4.0 mm, Ø5.0 mm
• 4 trephine drills (short): Ø4.0 mm, Ø5.0 mm, Ø6.0 mm, Ø7.0 mm
• 3 trephine drills (long): Ø4.0 mm, Ø5.0 mm, Ø6.0 mm
• 1 bone collector
• 2 saw disks: Ø7.0 mm, Ø10.0 mm

Components description

• Tissue Punches: Create precise openings in soft tissue to access surgical sites.
• Trephine Burs: Cylindrical cutting burs for controlled bone removal and channel creation.
• Guide Punches: Provide alignment and depth guidance for implant placement or trephination.
• Saw Disks: Thin circular blades for sectioning bone or hard tissue.

Design & Performance
The rotary instruments use a contra-angle latch-type connection to reduce vibration and heat generation, minimizing intraoperative trauma. Instruments are selected for consistent rotary performance and suitability in delicate oral surgical procedures.

Packaging & Sterilization
Instruments are supplied in a dedicated plastic polymer box with rigid rubber inserts for secure storage and transport. The box and instruments are autoclavable at 134° C.

Features

• Made of medical-grade German stainless steel.
• Passivation procedure applied to improve corrosion resistance.
• Delivered non-sterile; reusable and autoclavable.
• Undergo form, boiling and performance tests.
• Lifetime warranty against defects in materials and workmanship.

Technical specifications

• Model: Trimmer Kit 2
• SKU: OR-4827
• Material: Medical-grade German stainless steel
• Surface treatment: Passivation procedure applied
• Sterilization: Autoclavable at 134° C
• Condition on delivery: Non-sterile, reusable
• Connection type: Contra-angle latch-type
• Included instruments and sizes: 3 tissue punches (Ø4.0, Ø5.0, Ø6.0); 2 guide punches (Ø4.0, Ø5.0); 4 short trephine drills (Ø4.0, Ø5.0, Ø6.0, Ø7.0); 3 long trephine drills (Ø4.0, Ø5.0, Ø6.0); 1 bone collector; 2 saw disks (Ø7.0, Ø10.0)
• Packaging: Special plastic polymer box with rigid rubber inserts
• Quality tests: Form test, boiling test, performance test
• Warranty: Lifetime warranty against material and workmanship defects
