Compact multi-parameter monitor

wearableECGheart rate

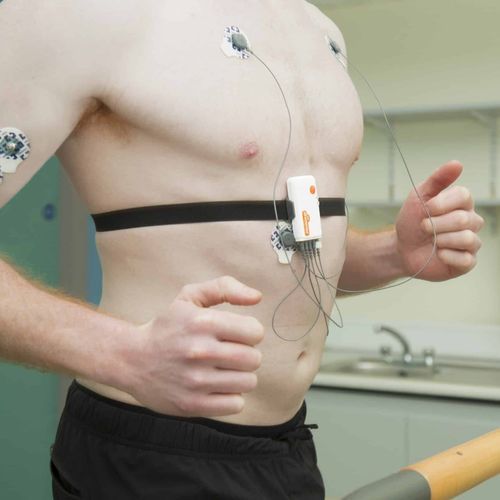

New users to Shimmer please visit our Consensys ECG development kit page for purchasing Shimmer3 ECG. The development kit will contain all items required to collect ECG data with Shimmer. The Shimmer3 ECG unit provides a configurable digital front-end, optimized for the measurement of physiological signals for ECG(EKG). The Shimmer3 ECG (Electrocardiogram) sensor records the pathway of electrical impulses through the heart muscle, and can be recorded on resting and ambulatory subjects, or during exercise to provide information on the heart’s response to physical exertion. • Five-wire, four-lead ECG solution, measuring bipolar limb leads and user’s choice of V1 – V6 • Digital interface includes test signal generation for validation purposes • 10 DoF Inertial Motion Sensing capability • Respiration demodulation from ECG data and lead-off detection With our ConsnesysPRO platform all signals can be measured simultaneously and in real-time. Data can be streamed for live visualization, while raw data can also be logged to an SD card and accessed for futher post processing. ConsensysPRO contains an ECG to Heart Rate algorithm that can be applied to live or logged data. ConsensysPRO is sold separately. An annual license can be purchased from our e store here. EMG: The Shimmer3 EMG (Electromyogram) sensor measures and records the electrical activity associated with muscle contractions, assesses nerve conduction, muscle response in injured tissue, activation level, or can be used to analyze and measure the bio-mechanics of human or animal movement. The Shimmer3 EMG is non-invasive (Surface) EMG and therefore is a representation of the activity of the whole muscle.
