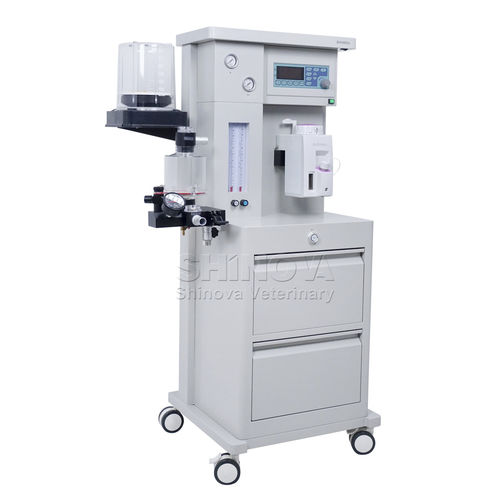

Veterinary anesthesia workstation AneCart-A
trolley-mounted

veterinary anesthesia workstation
veterinary anesthesia workstation
veterinary anesthesia workstation
veterinary anesthesia workstation
veterinary anesthesia workstation
veterinary anesthesia workstation
veterinary anesthesia workstation
Add to favorites
Compare this product


Characteristics

Applications
veterinary
Ergonomics
trolley-mounted

Description

Driven mode: Pneumatically driven electronically controlled Mode: Semi-open, Semi-closed or closed system Anesthetic vaporizer: One vaporizer Anesthesia Ventilator Display: High light LED display Ventilation mode: IPPV and Manual mode Tidal Volume: 50 ~ 1600ml Breath frequency: 1 ~ 90BPM I:E ratio: 4:1 ~ 1:6 Monitor parameter: Tidal volume, breath frequency, MV, Airway pressure Alarm: MV high alarm, MV low alarm, TV high alarm, TV low alarm Main Unit Circle absorber: Compact circle absorber Bellow: 50 ~ 1600ml Oxygen FLUSH: 25L/min ~ 75L/min Flow meter: O2 two-tube flowmeter O2 tube: 0L/min ~1L/min ~ 10L/min Gas source pressure O2: 0.25 ~ 0.65Mpa Gauge: 1 unit, O2

VIDEO
