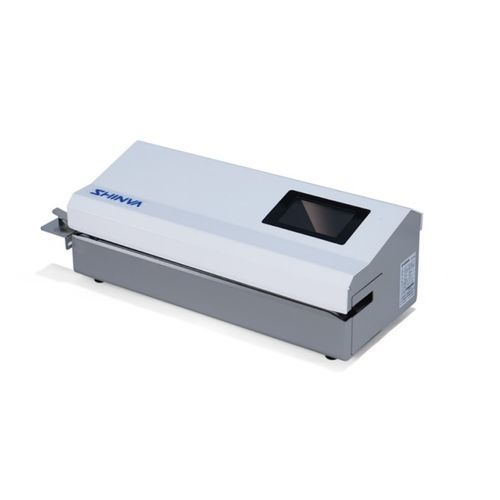

Medical sealing machine FK 302
automatedbenchtopcontinuous

Medical sealing machine - FK 302 - Shinva Medical Instrument - automated / benchtop / continuous
Medical sealing machine - FK 302 - Shinva Medical Instrument - automated / benchtop / continuous
Add to favorites
Compare this product

Characteristics

Applications
medical
Operation
automated
Configuration
benchtop
Options
continuous
Seal width

12 mm
(0 in)

Sealing speed

10 m/min

Power

400 W

Sealing temperature

220 °C
(428 °F)

Weight

12 kg
(26.5 lb)

Length

535 mm
(21 in)

Width

232 mm
(9 in)

Height

184 cm
(72 in)

Description

(1) Employing automated rapid continuous heat-sealing technology to enhance packaging efficiency; (2) Featuring high-temperature ceramic heating plates, it offers rapid heating, uniform warmth distribution, dry-heating capability, and extended service life.; (3) Features a 5-inch colour touchscreen display with an intuitive user interface for straightforward operation.; (4) Intelligent Temperature Control Adjustable from room temperature to 220°C, with precise working temperature control to ±1°C. Upon reaching the set temperature, both visual and audible alerts are triggered.; (5) Features an auxiliary cooling system with a temperature-linked exhaust ventilation system for cooling.; (6) Upon exceeding the temperature limit, the device enters protective mode, ceasing operation and emitting a fault alert.; (7) Features a temperature-maintaining standby function, with adjustable standby duration and temperature settings.; (8) Automatic fault alert function, enabling real-time monitoring of machine operation during running;封纹宽度 ≥12mm;封口强度符合YY/T 0698.5-2009的要求; (9) The print module can be ejected from the side, enabling external ink cartridge replacement without moving the device – a convenient and efficient solution.; (10) Features a sealing test printing function, which in this mode can print parameters affecting sealing effectiveness that require recording, such as time, temperature, speed, pressure, and customised content, facilitating inspection and archiving.; (11) Features large-capacity information storage capability; (12) Operator, pot number and batch, department name, and customised content can be pre-set for 12 items and stored.
