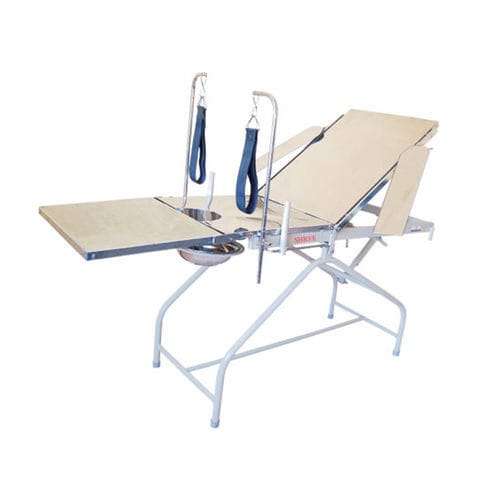

Universal operating table 981

mechanicalTrendelenburg3-section

SS or MS flat pieces welded to the horizontal supports. The backrest is adjustable on the auto ratchet arrangement, which consists of 12mm Ø rod. Middle section having Gynac opening. Leg section made of 1.22mm (18 SWG) sheet, Leg section is removable. The entire tabletop gives Trendelenburg (Head low / up) position by screw system provided with thrust ball bearing. L bent lithotomic rods made of 12 mm Ø SS these adjustable by 2 clamp levers. The entire Trendelenburg arrangement mounted on rectangular frame, with rectangular SS or MS tube support. This frame hinged on the tubular base. Waste collecting SS bowl provided rest on SS bracket made of 9.5mm Ø SS rod. MS Material Pre-treated In seven Tanks Chemical process & epoxy powder Coated, which it makes un corrosive Medical equipment / Medical Furniture. Optional Accessories : Top SS & base powder coated. All stainless steel.
