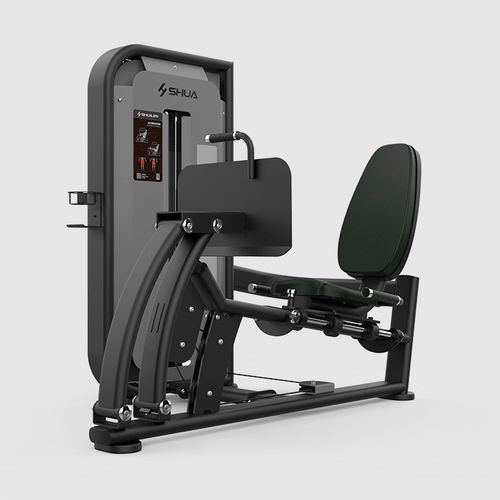

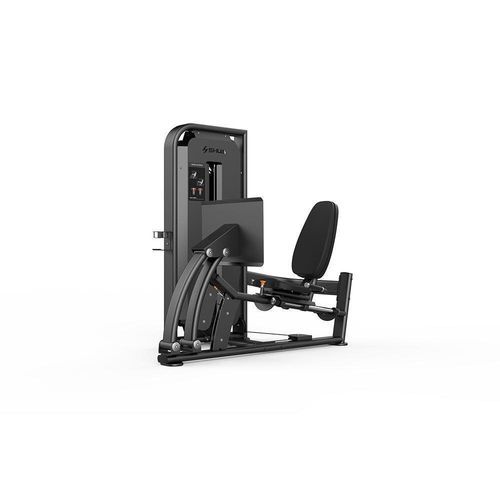

Leg press gym station SH-G6809

Overview
Seated leg press SH-G6809 is a commercial-grade strength training machine designed to target the quadriceps, gluteus and gastrocnemius. Part of the 68 Core Series, it features a reinforced Q235A steel frame, ergonomic adjustable seat and an oversized foot platform to support varied stances and heavy loads. Engineered for controlled, smooth motion and long service life, suitable for commercial gyms and training facilities.

Key features

• Controlled leg press mechanism for smooth, safe movement
• Depth-assist handle for easy positioning and user control
• Oversized, textured foot platform to accommodate different foot placements
• Ergonomic adjustable PU seat for operator comfort
• Heavy-duty Q235A frame and precision components for durability

Additional product notes
Components include PA-coated steel cable (spec. 5.6), portal-frame main beam and subframe profiles for structural stability. Finish options and padding colors are available as indicated. Designed to simplify exercise motion and improve comfort during training.

Specifications

• Model: SH-G6809
• Series: 68 Core Series
• Dimensions (L × W × H): 1790 × 1145 × 1757 mm / 70 × 45 × 69 in
• Net weight: 325 kg / 717 lbs
• Gross weight: 380 kg / 838 lbs
• Main frame material: Q235A (portal frame 150×50×t2.0; subframe 120×50×t2.0)
• Cable: steel cable, PA material, spec 5.6
• Seat: adjustable PU foam, color dark green
• Primary target muscles: Quadriceps, Gluteus, Gastrocnemius
