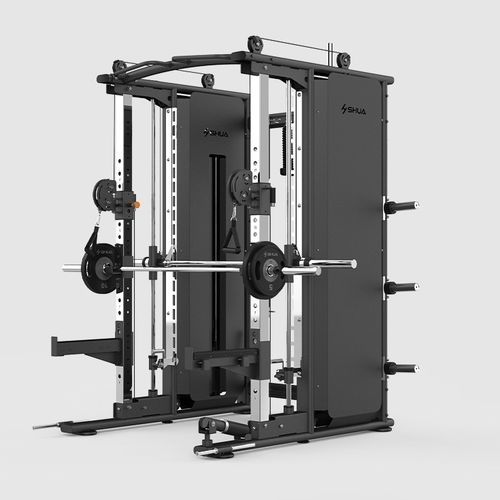

Smith machine with pull-up bar SH-G7225

Product overview
The Multi-Functional Trainer combines a Smith Machine, Power Rack and Functional Trainer into a compact footprint of approximately 4 m². Model information in specifications lists SH-G6825 while the product code in the header/URL is SH-G7225. The unit includes dual weight stacks, a 180° rotating pulley and multiple safety positions to support a wide range of commercial training applications.

Key features

• Integrated system: Smith Machine, Power Rack and Functional Trainer in one unit
• Compact footprint: effective area ≈ 4 m²
• 20 selectable weight positions for progressive resistance
• 18 safety hooks to secure bar positions
• 180° rotating pulley for varied cable trajectories
• Dual 100 kg weight stacks for balanced resistance

Quality & Testing

• Designed for long-term commercial use
• Tested for more than 900,000 cycles in laboratory conditions
• Engineered for smooth cable and guide operation
• Ergonomic arrangement to support correct biomechanics
• Complies with the manufacturer's quality assurance and applicable certifications

Specifications
Name: Multi-Functional Trainer
Model (page specification): SH-G6825
Product code (header/URL): SH-G7225
Dimensions (L × W × H): 2074 × 1931 × 2327 mm / 81 × 76 × 92 in
Weight Stack: 2 × 100 kg / 2 × 220 lbs
Net Weight: 575 kg / 1268 lbs
Gross Weight: 716 kg / 1579 lbs
Color: Black
Footprint / Effective area: ~4 m²
Features: Smith Machine, Power Rack, Functional Trainer, 180° rotating pulley, 18 safety hooks, 20 weight adjustments

Technical specifications

• Name: Multi-Functional Trainer
• Model (page spec): SH-G6825
• Product code shown in header/URL: SH-G7225
• Dimensions (L × W × H): 2074 × 1931 × 2327 mm (81 × 76 × 92 in)
• Weight Stack: 2 × 100 kg (2 × 220 lbs)
• Net Weight: 575 kg (1268 lbs)
• Gross Weight: 716 kg (1579 lbs)
• Color: Black
• Footprint / Effective area: ~4 m²
• Functions: Smith Machine, Power Rack, Functional Trainer, 180° rotating pulley, 18 safety hooks, 20 weight adjustments
