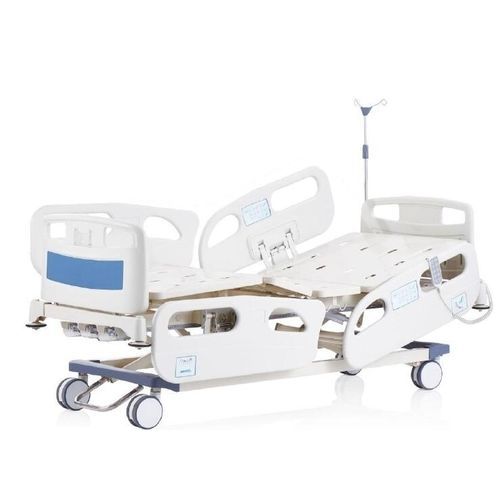

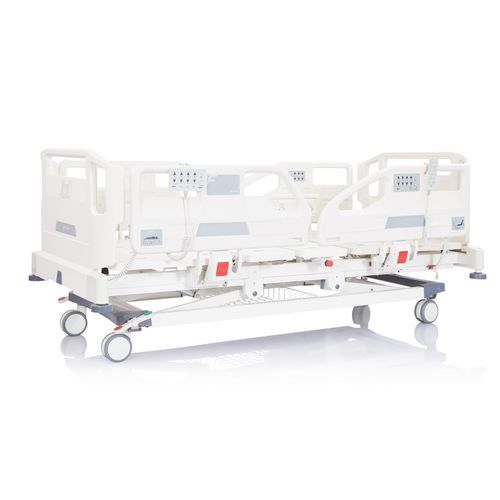

intensive care bed / medical / electric / Trendelenburg
E5704

{{requestButtons}}

Characteristics

  • Applications:

    medical, intensive care

  • Operation:

    electric

  • Features:

    height-adjustable, Trendelenburg, reverse Trendelenburg

  • Other characteristics:

    on casters

  • Number of sections:

    4-section

Description

1, Size:
L2200mm*W1060mm*H500-760mm

2, Function:
Overall Adjustment Range: 500-760mm,
Backrest Adjustment Range: 75º±5°,
Footrest Adjustment Range: 40 ° ± 5 °,
The dynamic load of the bed is over 250KG, and the payload is over 400KG.

3, Accessory Detail:
*Head/foot board: ABS engineering plastics headboard and footboard could be removed according to your need and used as CPR board.
*Bed plate and frame: Cold rolled sheet bed plate and 30mm*60mm*1.2mm carbon steel rectangular tubes frame.
* Rail: Push-button ABS damping rail with gas spring, stable and durable.
* Drainage hooks on the two sides.
* The ABS anti-collision wrap angle formed by one-time injection molding can only be detachable by special tools, with the adjustable IV pole inserted on it.
* Castor: Dia.150mm Casters with Central Locking System.
*Backup battery.
