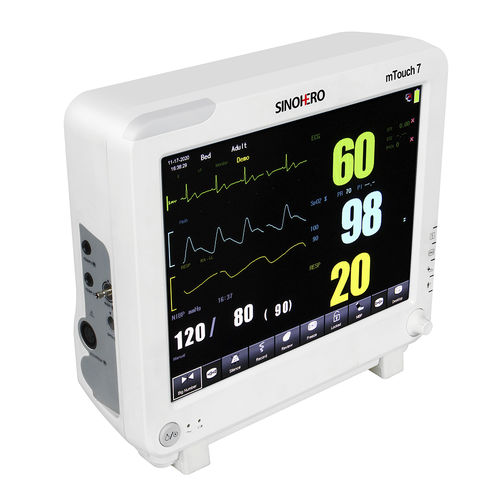

Compact multi-parameter monitor mTouch 7

portablemodularECG

●Ultimate slim design, compact with style ●Powerful software function include Large Font,Short trend, Arrhythmia and ST Analysis ●External 4-channel printer with plug-and-play feature ●Wire or wireless networking available Technical Specification Size and Weight - Product size: 30.4x27.9x13.7cm - Packing size: 41x30x35cm - Gross weight: 7kg Multi displays - Standard display - Large -font Display - Trend coexist display - OxyCRG dynamic view display Indicator - Power indicator light - Battery indicator light Inter Face - Parameter cable inter face - AC Power input socket - Ground wire interface - Network inter face - Alternate Display - USB interface - SD memory card interface Trend Table - Resolution: 1,5,10,30,60min - Trend Data: 256 Hours trend data for all parameters - NIBP measurement: 400 Groups Alarm - Categories: Physical alarms and Technical alarms - Priority: High, Medium and Low - Alarm sound levels: 0,1,2,3,4 - Notification: Visual and Audible Networking - Connected to central monitoring system Recorder - Type: Thermal dot array - Number of waveform channels: 3 (standard), 4(optional) - Paper width: 112mm - Paper length: 20m - Print speed: 25mm/s other speeds can be defined (optional) Operation Environment - Temperature: 0℃-40℃ - Relative humidity: ≤85% (noncondensing) - Atmospheric pressure: 860hpa-1060hpa - Patient Range: Adult, Pediatric, Neonate
