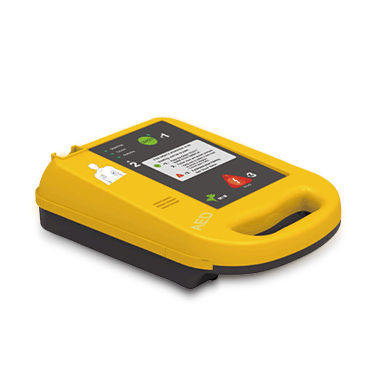

Automatic external defibrillator AED7000

biphasic

Three-step defibrillation process Two-button operation Extensive voice and visual prompts for the operator Lock-out protection to prevent inadvertent defibrillation Charge Time 8 sec. to 150J 10 sec to 200 J (New battery) Analysis Time 9 sec. The maximum time from the initiation of rhythm analysis to readiness for discharge with a new battery. Less than 30 seconds The maximum time from the initiation of rhythm analy sis to readiness for discharge after 6 shocks. Less than 35 seconds The maximum time from initially switching power on to readiness for discharge. Less than 25 seconds Audible Prompts 20 audible prompts Visual Prompts LED prompts Controls Two buttons- On/Off, Shock Output Energy Accuracy +15% into any impedance from 25 to 175Q Output disabled when the patient impedance is outside Limits 20Q to 200Q Shelf Life (25C±15C) 10 years (5 years storage + 5 years standby)5 years standby (after installation) Physical Operating Temperature 0Cto 40C Operating Humidity Relative humidity between 30% and 95%(non-condensing) Storage Temperature (without battery) -20C to 55C Storage Humidity (without battery) Up to 93% (non-condensing)
