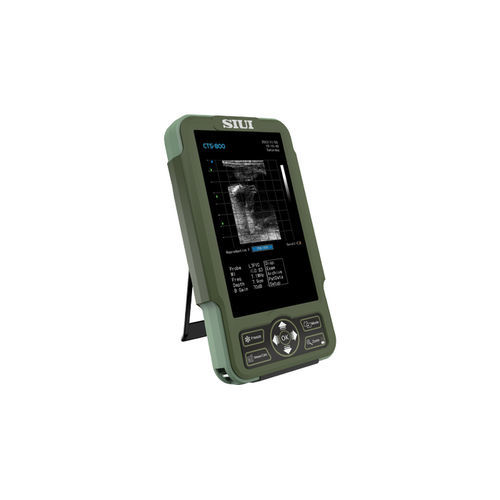

Hand-held veterinary ultrasound system CTS-800

multipurposefor large animalsB/W

Monitor: 7-inch WVGA LCD monitor Weight: 0.8kg Environmental rating: IP54 (main unit) IP67 (probe head) Battery: 3 hours operation time Display mode: B 2B ZOOM B B/M M Depth: Max to 250mm B gain: 0-100 Image storage: 256 frames Cine loop: 256 frames Probe: L50/7.5 MHz linear rectal probe (standard) L65/5.0 MHz linear rectal probe (optional) R20/5.0 MHz micro convex probe (optional) Function Gravity Sensor: You can operate the ultrasound system either in transversal layout or vertical layout. It can automatically adapt to two different layouts when you rotate it. Grid for estimation: With grid on the image area, you can easily estimate the size of the target substance like follicle fertilized egg etc.
