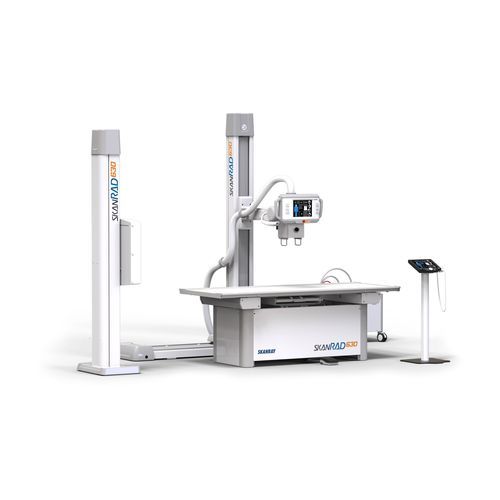

Digital X-ray system SkanRAD 630

for multipurpose radiographywith floor-standing buckyfixed

Product overview
SkanRAD 630 is a full-room digital radiography (DR) X-ray system optimized for high patient throughput. It combines dual detectors, motorized movements and automated workflows to deliver consistent, high-precision radiographs for general and specialty radiography applications.

Key features

• Auto stitching for multi-image exams to produce seamless composite radiographs
• Synchronized movement and automated tracking between table and chest Bucky
• Dual detectors in Super Premium 630 configuration for full-room coverage
• Patient positioning guidance on the tube head with digital angle display and positioning assist
• Tube head–mounted 10.4-inch touchscreen console for parameter configuration and technique selection
• Ergonomic, motorized hardware with minimal cabling for faster examinations
• Attachable/detachable and removable grids to adapt workflows (pediatrics, etc.)
• Rotating Bucky and scalable DR configurations for flexible installation

Configurations / Variants

• SKANRAD 630 HF FIX. RAD. SYS. 4WT,KT — listed variant on the product page
• SKANRAD 630 HF FIX. RAD. SYS. 6WT,KT — listed variant on the product page

Imaging / operational highlights

• Automated image stitching with synchronized movements for multi-image, seamless exams
• Engineered for rugged, high-throughput clinical environments
• Intuitive patient positioning guidance and digital readouts displayed on the tube head

Technical specifications

• Generator: 50 kW, 50 kHz High Frequency, Constant Potential (DC), FPGA & micro-controller based
• kV range: 40 kV – 125 kV
• mA range: 10 mA – 630 mA
• mAs range: 0.1 mAs – 1000 mAs
• Exposure time (listed): 5 ms to 5 s (FAQ references up to 8 s)
• Minimum exposure time: 5 ms
• Dual focus rotating anode (IEC60336): 1.0 / 2.0 mm
• Anode heat capacity (spec sheet): 200 kHU; FAQ anode heat content: 142 kJ (200 kHU)
• Anatomical Programming: user programmable, up to 1250 presets
• Tube head rotation: ±120°
• Tube head angle indicator (goniometer)
• Tube head column rotation: ±180°
• Horizontal stroke of tube head: 1500 mm
• Vertical stroke of tube head: 1455 mm
• Table Bucky stroke: 500 mm
• Chest stand Bucky stroke: 1300 mm
• Patient table weight capacity: up to 200 kg
• Input voltage: 3-phase 400–415 V AC, 50–60 Hz
