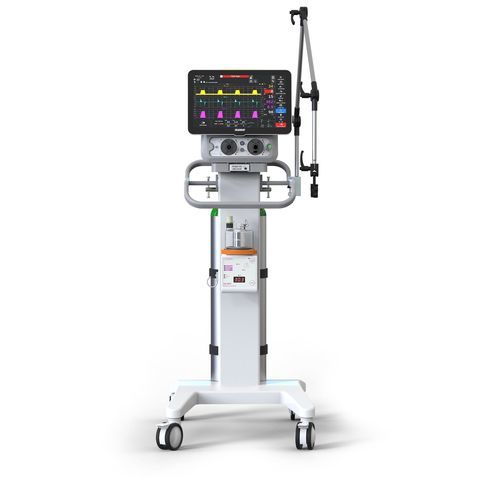

Intensive care ventilator SkanRespiro Turbo
emergencyclinicalelectronic

Intensive care ventilator - SkanRespiro Turbo - Skanray Technologies - emergency / clinical / electronic
Intensive care ventilator - SkanRespiro Turbo - Skanray Technologies - emergency / clinical / electronic
Intensive care ventilator - SkanRespiro Turbo - Skanray Technologies - emergency / clinical / electronic - image - 2
Intensive care ventilator - SkanRespiro Turbo - Skanray Technologies - emergency / clinical / electronic - image - 3
Intensive care ventilator - SkanRespiro Turbo - Skanray Technologies - emergency / clinical / electronic - image - 4
Intensive care ventilator - SkanRespiro Turbo - Skanray Technologies - emergency / clinical / electronic - image - 5
Add to favorites
Compare this product

Characteristics

Applications
emergency, intensive care, clinical
Type
electronic
Function
transport
Ventilation mode
non-invasive, CPAP, multi-mode, SIMV, bi-level positive-pressure, high-flow, pressure support ventilation, invasive
Configuration
on casters
Other characteristics
with touch screen
Tidal volume

Max.: 2,000 ml
(67.6 US fl oz)

Min.: 2 ml
(0.1 US fl oz)

Description

Overview
  • SkanRespiro Turbo is a universal ventilator designed for adult, paediatric and optionally neonatal patients. Suitable for ICU, intra-hospital transport and emergency use.


Key benefits & features
  • Supports invasive and non-invasive ventilation in all modes.
  • Shows a preview of the waveform before starting ventilation.
  • Smart lithium-ion battery: single battery provides up to 5 hours; dual battery configuration provides up to 10 hours of backup.
  • Can be used for intra-hospital transport.
  • 15.6" widescreen HD display with P-CAP touch suitable for operation with glove.
  • WiFi and Ethernet communication ports; USB x2 for data transfer and system maintenance.
  • Remote nurse call and screen mirroring via HDMI.
  • Jet nebulizer connect port.


Ventilation modes
  • A/CMV-VC, A/CMV-PC
  • SIMV-VC, SIMV-PC
  • CPAP (VC/PC backup)
  • BI-LEVEL, APRV, MMV
  • Volume-guarantee (VG) options in all PC modes
  • NIV option in all modes and HFOT (High Flow Oxygen Therapy)


Monitoring, measurements & maneuvers
  • Waveform monitoring of airway and tracheal pressure, flow and volume.
  • Loop monitoring: pressure-volume, flow-volume and pressure-flow loops (including historical and reference loops).
  • Trend storage for extended scientific data collection (trends spanning up to 24 days).
  • Maneuvers: lung recruitment, P0.1, suction, inspiratory and expiratory hold.
  • Lung dynamic measurements: Pplat, Ptrach, RSBI, R & C.


Performance & technology
  • ‘DFC’ (Dynamic Flow Control) technology enabling maximum peak inspiratory flows up to 200 L/min and adapts to patient dynamics.
  • Tidal volume delivery range: 2 mL to 2000 mL.
  • Leakage compensation up to 100% of set tidal volume.


Configurations & options
  • Available with Basic Trolley or Advanced Trolley configurations.
  • Single battery standard; dual battery optional for extended backup.


Technical specifications
  • Model: SkanRespiro Turbo
  • Patient support: Adult, paediatric (standard); neonatal (optional upgrade)
  • Ventilation modes: A/CMV-VC, A/CMV-PC, SIMV-VC, SIMV-PC, CPAP (VC/PC backup), BI-LEVEL, APRV, MMV, VG options, NIV, HFOT
  • Tidal volume range: 2 mL – 2000 mL
  • Peak inspiratory flow (DFC): up to 200 L/min
  • Battery backup: single battery ≈ 5 hours; dual battery ≈ 10 hours
  • Display: 15.6" widescreen HD P-CAP touch
  • Communications: WiFi, Ethernet, HDMI (screen mirroring)
  • Data ports: USB x2 (data transfer, system maintenance)
  • Trend storage: up to 24 days of trends; screen snapshots can be saved to USB
  • Maneuvers & measurements: lung recruitment, P0.1, suction, insp/exp hold; Pplat, Ptrach, RSBI, R & C
  • Leak compensation: up to 100% of set tidal volume
  • Accessories/connectivity: Jet nebulizer port; usable with pipeline, cylinder and concentrator oxygen sources
  • Valves: inspiratory & expiratory valves are autoclavable
  • Configurations: Basic Trolley / Adv. Trolley
  • Typical price (indicative on page): ₹1,449,000 (base configuration)
