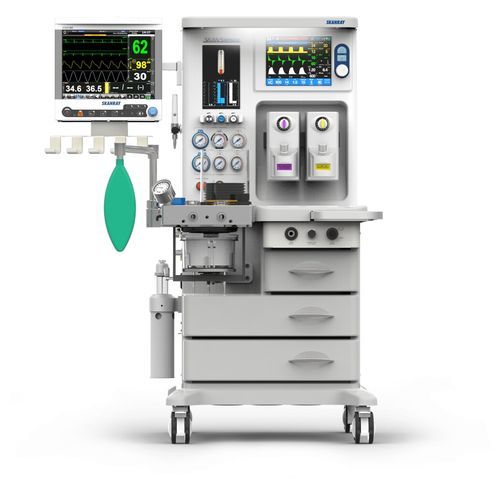

Pediatric anesthesia workstation SkanSiesta Pro

trolley-mountedwith respiratory monitoringwith ventilator

Overview
SkanSiesta Pro is an advanced anaesthesia workstation and ventilator platform designed for perioperative and intensive care use, including support for cardiac bypass procedures. It accepts 3‑gas pipeline configurations with automatic drive‑gas switching, integrates monitoring and offers advanced ventilation modes for patients from pediatric to adult.

Key Features

• 3‑gas pipeline manifold (O2 + N2O + Air) with O2 yokes
• Automatic switching of drive gas to air source when available
• 10.4" touch screen display with rotary encoder
• Pediatric to adult application with tidal volumes from 20 mL to 1500 mL
• Multiple ventilation modes pre‑configured (no extra purchase required)
• Mechanical or electronic fresh gas flow (FGF) flowmeter variants
• In‑built spirometry with FGF compensation
• Inspiratory and expiratory hold manoeuvres; P‑V and F‑V loops and event logs
• High‑flow oxygen therapy (HFOT) up to 50 L/min (auxiliary O2 up to 50 L/min)
• Internal 3‑litre O2 reservoir for backup supply
• Auto bypass circle system for uninterrupted ventilation
• Dedicated cardiac bypass workflow / mode
• Anaesthetic gas scavenging (AGSS) available as an optional module

Ventilation Modes & Monitoring

• VCV, PCV, PCV‑VG, SIMV‑VC, SIMV‑PC, PSV (pre‑configured)
• Display of 12+ critical ventilation parameters
• Support for ICU‑class ventilation modes and special manoeuvres

Design & Usability

• Large capacitive touch display with rotary encoder for intuitive operation
• Reading light with brightness control
• Mechanical/electronic configuration options to suit clinical preferences

Did you know

• SkanSiesta Pro can automatically switch air/O2 as drive gas.
• It has an internal 3‑litre O2 reservoir as backup.
• Supports cardiac bypass procedures and continuous ventilation via auto bypass circle system.

Technical specifications

• Model name: SkanSiesta Pro
• Gas configuration: 3‑gas manifold (O2, N2O, Air) with O2 yokes; Air and O2 via pipeline
• Drive gas auto‑switching: Yes (auto‑switch to air when available)
• Display: 10.4" touch screen with rotary encoder
• Tidal volume range: 20 mL – 1500 mL (Pediatric to Adult)
• Ventilation modes: VCV, PCV, PCV‑VG, SIMV‑VC, SIMV‑PC, PSV
• Fresh gas flow monitoring: Mechanical or Electronic flowmeter variants
• Spirometry: In‑built spirometry with FGF compensation
• Special maneuvers: Inspiratory & expiratory hold; P‑V and F‑V loops; event logs
• High Flow Oxygen Therapy (HFOT): up to 50 L/min
• Backup O2 reservoir: Internal 3 litre
• Auto bypass circle: Yes (for uninterrupted ventilation)
• Cardiac bypass: Dedicated support / mode
• AGS/AGSS: Optional module available
• Monitoring: Display of 12+ critical ventilation parameters
• Accessories & warranty: Standard accessories and one year warranty (as listed on the product page)
