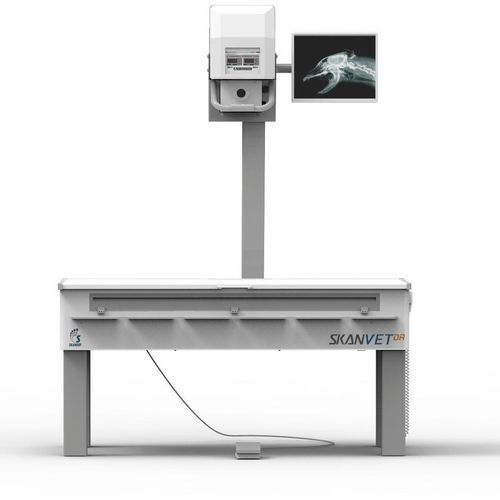

Digital veterinary X-ray system SkanVet DR

with table

Overview
SkanVet DR is an integrated mobile digital radiography (DR) system developed for veterinary clinics. The single-phase, compact design combines a mobile high-frequency X-ray generator, a 14 x 17 in flat panel detector (FPD) and an integrated workstation to support rapid imaging workflows in NICU, ICU, trauma and orthopaedic examinations.

Key benefits

• Mobile high-frequency generator delivering reliable imaging performance with low leakage.
• Single-hand manoeuvrability for faster patient positioning and reduced handling time.
• Integrated workstation with dedicated preview screen for instant image review and streamlined acquisition.
• Veterinary-focused features: fixed table with secure binders, measurement tools for common veterinary assessments (Norberg Angle, VHS, TPLO).

Imaging & operation

• High-frequency X-ray generator (200 kHz) with artefact-free imaging.
• Collimator with 90° rotation and tube-head rotation to enable flexible positioning.
• Dedicated preview screen and support for single-action exposure; hand and foot switch options.

Software, connectivity & data

• DICOM 3.0 compatibility and PACS-ready images for seamless integration with PACS, HIS and RIS.
• Export images to USB in DICOM/JPEG formats; network connectivity via LAN and optional Wi‑Fi.
• Local storage reported up to 50,000 images; scalable image database for clinical use.

Applications

• Designed for veterinary NICU, ICU, trauma and orthopaedic imaging.
• Includes veterinary measurement tools for surgical planning and routine assessments.

Warranty & supply

• Supplied with standard accessories and a one-year warranty (as stated on the product page).

Technical specifications

• Model: SkanVet DR
• Generator frequency: 200 kHz (High Frequency)
• Generator power: 4 kW
• Maximum tube current: 100 mA
• kV range: 40–100 kV
• mAs range: 0.1–250 mAs
• Detector: 14 x 17 in high-resolution flat panel detector (FPD)
• Workstation: Quad-core processor
• System type: Mobile single-phase DR system for veterinary clinics
• Table: Fixed table with 4-way floating tube head arm, interlocked with detector; capacity up to 200 kg with secure binders
• Collimator: 90° rotation
• Operation: Single-hand manoeuvrability; single-action exposure; hand and foot switch supported
• Imaging quality: >200,000 artefact-free images reported
• Storage: Up to 50,000 images (reported)
• Connectivity: DICOM 3.0, PACS, HIS, RIS; printer connectivity; LAN and optional Wi‑Fi
• Export: DICOM/JPEG to USB pen drive
• Other features: Dedicated preview screen; advanced veterinary measurement tools (Norberg Angle, VHS, TPLO)
• Accessories & warranty: Standard accessories included; one-year warranty (as stated)
