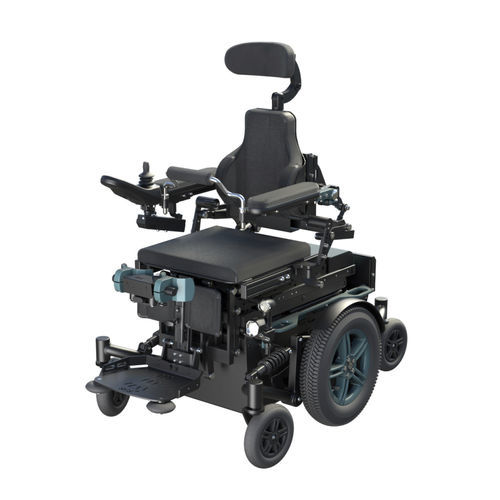

Electric wheelchair Viva Junior S

pediatricoutdoorindoor

Overview
The Swiss Viva Junior S is a pediatric multiposition standing power wheelchair that enables therapeutic standing from lying or sitting positions while remaining compact and manoeuvrable for everyday use.

Target users
For children and adolescents requiring a configurable electric wheelchair that supports sitting, standing and supine positions and can be adapted as the user grows.

Key features

• Slim, compact chassis for indoor manoeuvrability
• Independent wheel suspension for improved ride comfort
• Standing function deployable directly from lying or sitting positions
• Dynamic knee supports reduce pressure on the lower legs and facilitate standing
• Electric adjustments: seat tilt, back angle with length compensation, synchronized armrest movement, leg rests with length compensation
• Minimal on-site programming required
• Vehicle tie-down options with Dahl or lashing eyes

Daily benefits

• Enhanced mobility indoors and outdoors thanks to a mid-mounted drive and sophisticated suspension
• Improved interaction and independence through therapeutic standing and adjustable standing curves
• Modular design allows individual customisation and growth with the user
• Integrated solutions from long-term wheelchair development, including biodynamic positioning package and fold-out control unit

Additional information
Designed to enable standing on uneven surfaces such as sand or grass, facilitating close interactions and face-to-face activities across varied environments.

Colors
turquoise blue, raspberry red, ultramarine blue, Night Rider (glows in the dark)

Technical data
Maximum speed: 8 / 12 km/h
Total length with standard leg rests / Without leg rests: 107 cm / 99 cm
Width: 59 cm
Turning radius with leg rests: 65 cm
Standard seat width: 27–38 cm
Standard seat depth: 30–40 cm
Minimum seat height under load without seat cushion: 47.5 cm
Seat height including SKS standard seat: 52 cm
Seat angle mechanically adjustable / electric: n.a. / 0–30°
Back angle mechanically adjustable / electric: n.a. / 90–133°
Electric seat lift: 0–30 cm
Electrically adjustable leg rests: EYES
Adjustable leg rest bracket: n.a.
Front/back wheel diameter: 17.5 cm
Drive wheel diameter: 35 cm
Drive motor: 2 x 400 W
Batteries: 2 x 12 V / 60 Ah (C20)
Load capacity: 75 kg
Maximum obstacle height: 7 cm

Characteristics / specifications

• Maximum speed: 8 / 12 km/h
• Total length (with standard leg rests / without leg rests): 107 cm / 99 cm
• Width: 59 cm
• Turning radius (with leg rests): 65 cm
• Standard seat width: 27–38 cm
• Standard seat depth: 30–40 cm
• Minimum seat height under load (without seat cushion): 47.5 cm
• Seat height (including SKS standard seat): 52 cm
• Seat angle (mechanical / electric): n.a. / 0–30°
• Back angle (mechanical / electric): n.a. / 90–133°
• Electric seat lift: 0–30 cm
• Electrically adjustable leg rests: EYES
• Front/back wheel diameter: 17.5 cm
• Drive wheel diameter: 35 cm
• Drive motor: 2 x 400 W
• Batteries: 2 x 12 V / 60 Ah (C20)
• Load capacity: 75 kg
• Maximum obstacle height: 7 cm
