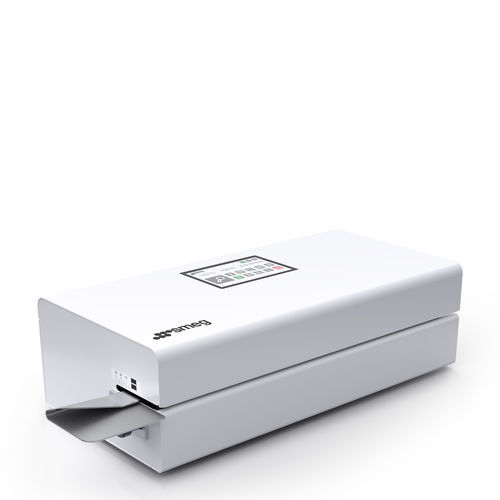

Medical thermosealer SGR300S-PVfor central sterilization unitsdentalfor medical packaging
Add to favorites
Compare this product
Characteristics
- Applications
- medical, for central sterilization units, dental
- Container type
- for medical packaging
- Configuration
- benchtop
- Options
- with printer, rotary, with touchscreen
- Seal width
12 mm
(0 in)- Sealing speed
Max.: 13,000 mm/min
(9 in/s)Min.: 5,000 mm/min
(3 in/s)- Sealing temperature
Max.: 220 °C
(428 °F)Min.: 0 °C
(32 °F)- Weight
16.2 kg
(35.7 lb)- Length
26 cm
(10 in)- Width
61 cm
(24 in)- Height
16 cm
(6 in)
Description
Overview
Key features
Target
Aesthetics
Type
Technical Features
Programs / Functions
Electrical Connection
Interface
Logistic Information
Technical specifications
- Benchtop thermosealer for validated sterile packaging of medical and dental instruments in sterilization departments (CSSD) and dental packaging rooms.
Key features
- Rotating sealing: Yes
- Validatable sealing process according to EN ISO 11607-2: Yes
- Sealing temperature: 0–220°C
- Sealing speed: 5–13 m/min
- Sealing seam width: 12 mm
- Display: 5" Touch Screen
- Printer: Yes (prints traceability data on packaging)
Target
- Dental care: Packaging room
- Health care: Central Sterile Supply Department (CSSD)
- Instruments solutions: Medical and dental instrumentation packaging
Aesthetics
- Colour: White
Type
- Product family: Thermosealers
Technical Features
- Validatable sealing process according to EN ISO 11607-2: Yes
- Seal margin: 0–35 mm
- Sealing temperature: 0–220°C
- Sealing seam width: 12 mm
- Sealing speed: 5–13 m/min
Programs / Functions
- Rotating sealing: Yes
- Standby function: Yes
- Automatic start function: Yes
Electrical Connection
- Voltage: 230 V
- Frequency: 50 Hz
- Plug: (F;E) Schuko
Interface
- Display: 5" Touch Screen
- USB ports: 2
- RS232 serial ports for PC connection: 2
- Traceability data: Print out on the packaging
- Printer: Yes
- Barcode scanner: Optional
- LAN connection: Yes
Logistic Information
- Width: 610 mm
- Depth: 255 mm
- Height: 155 mm
- Net weight: 16.200 kg
Technical specifications
- Model: SGR300S-PV
- Product family: Thermosealers
- Colour: White
- Rotating sealing: Yes
- Validatable sealing process: EN ISO 11607-2
- Seal margin: 0–35 mm
- Sealing seam width: 12 mm
- Sealing temperature: 0–220°C
- Sealing speed: 5–13 m/min
- Display: 5" Touch Screen
- Printer: Yes
- USB: 2 ports
- RS232: 2 ports
- LAN: Yes
- Barcode scanner: Optional
- Voltage: 230 V
- Frequency: 50 Hz
- Plug type: (F;E) Schuko
- Dimensions (W x D x H): 610 x 255 x 155 mm
- Net weight: 16.200 kg
