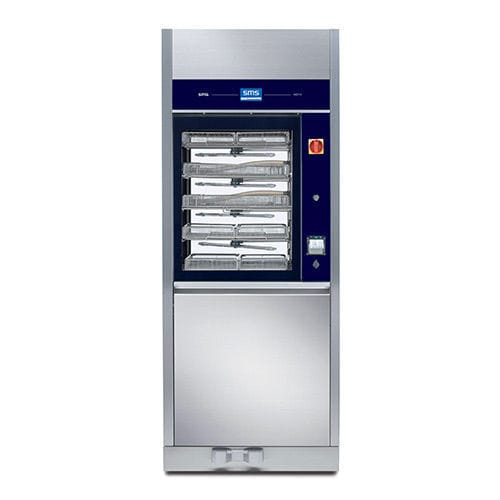

The MD 10 is the smallest device from the new line of washer-disinfectors with vertically sliding doors. It has a standard capacity of 10 DIN trays, but it can be expanded to 12 DIN trays with the use of special washing racks.
Like the MD 15, which has a larger capacity, the MD 10 has a very easy and convenient loading system. It can be equipped with a washing rack recognition system, a washing arm rotation control system and an automatic loading and unloading system.
A wide selection of washing racks allows you to choose a set that will perfectly match the range of tools and equipment you wash and disinfect.
10 DIN basket capacity with the possibility of extending to 12 DIN baskets
usable chamber dimensions WxDxH: 550 x 620 x 685 mm
washing chamber made of AISI 316L stainless steel
2 washing arms permanently installed in the chamber, one at the top and one at the bottom
individual racks have additional washing arms ensuring the highest washing standard
washing at temperatures up to 95 ° C – thermal disinfection
LED lighting system
multilingual control panel with a TFT color touch screen (on both sides)
programs: 20 default and 20 programmable
control panel protected by a multilevel password system
USB port for archiving washing cycle logs
Ethernet port for connection to a LAN network
overall dimensions LxDxH: 780 x 800 x 1950 mm
housing made of AISI 304 stainless steel
2 full glass vertically sliding doors
interlocking door system, which ensures complete dirty and clean side separation
high pressure hot air drying system with HEPA filters (99.999% efficiency)
drying system with an airflow rate of 220 m3/h
