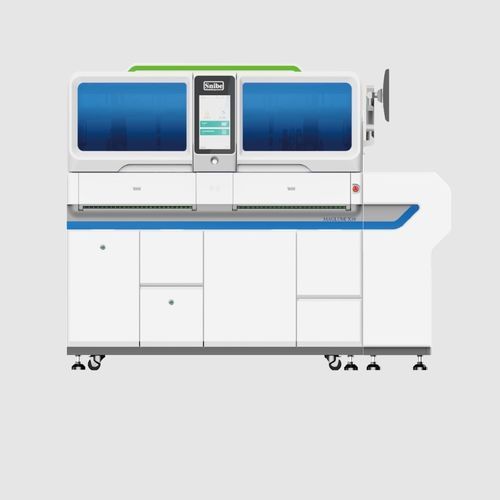

Fully automated immunoassay analyzer MAGLUMI X10

for clinical diagnosticchemiluminescencechemiluminescence immunoassay

Overview
MAGLUMI X10 is a fully-automatic Chemiluminescence Immunoassay (CLIA) analyzer for medium to large hospitals and clinical laboratories. Based on an upgraded X-TECH platform, it provides throughput up to 1000 tests/hour per module with integrated automation and user-focused operability.

Key Features

• Throughput: up to 1000 tests/hour (single module)
• Scalable to 4000 tests/hour (four modules combined)
• Footprint: 2.4 m²
• Sample positions: 300
• Reagent positions: 50
• Walk-away capacity: up to 3000 tests

Benefits & Performance Highlights

• High throughput with space efficiency up to 422 T/H/m²
• Integration-ready: compatible with TLA/LAS for automated workflow linking
• Patented pipetting: 10 μL micro-pipetting with between-day precision < 1%
• Accurate incubation: 360° constant incubation at 37°C for consistent reaction conditions
• Intelligent washing: multiple washing modes and minimal carry-over ("Zero" carry-over rate)
• Fast reagent handling: built-in RFID reader enables reagent identification/loading in ~1 second
• Large consumable capacity to reduce frequent exchanges
• User-oriented software: real-time monitoring and an intuitive UI for streamlined operation

Product Description
MAGLUMI X10 combines modular scalability, compact footprint and high sample/reagent capacity to support high-volume clinical testing. Its X-TECH core, precise micro-pipetting, controlled incubation and advanced washing deliver reproducible results while integration and software features enable efficient laboratory workflow.

Technical specifications

• Model: MAGLUMI X10
• System type: Fully-automatic Chemiluminescence Immunoassay (CLIA) system
• Core technology: Upgraded X-TECH
• Maximum throughput (single module): 1000 tests/hour
• Maximum throughput (four modules combined): 4000 tests/hour
• Footprint: 2.4 m²
• Sample positions: 300
• Reagent positions: 50
• Walk-away capacity: up to 3000 tests
• Space efficiency: up to 422 T/H/m²
• Pipetting: 10 μL micro-pipetting; between-day precision < 1%
• Incubation: 360° constant incubation at 37°C
• Washing: multiple washing modes; "Zero" carry-over rate
• Reagent loading: built-in RFID reader, reagent loading in ~1 second
• Integration: capable of linking with TLA/LAS (Laboratory Automation Systems)
• Software: real-time monitoring with user-friendly UI
