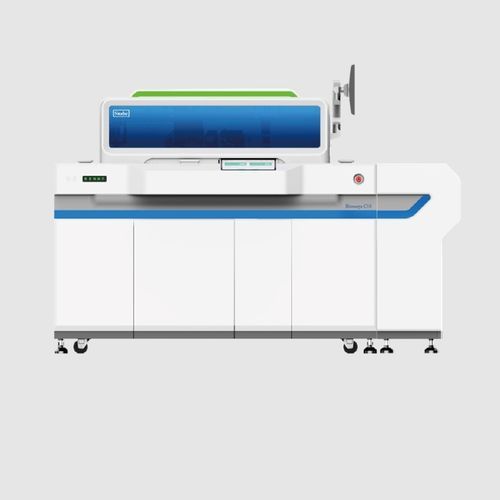

Automatic biochemistry analyzer Biossays C10

integrated systemfloor-standingwith ISE

Product type
Automatic biochemistry analyzer

Overview
Biossays C10 is a high-throughput biochemistry analyzer designed for clinical and centralized laboratory environments. It combines independent detection channels for biochemistry and ISE tests, intelligent reagent management and scalable integration options to support continuous, automated workflows and increased sample capacity.

Key features

• Throughput: up to 3000 T/H (Biochemistry 2000 T/H, ISE 1000 T/H)
• Sample positions: 300
• Reagent positions: 200
• Supports whole blood HbA1c testing with automated hemolysis
• Compatible with laboratory automation systems (TLA/LAS)

Benefits & Highlights
High Efficiency

• Total throughput up to 3000 T/H — independent sample arms and detection channels for ISE and biochemistry maintain maximum speed for each test type
• Automated hemolysis for whole blood HbA1c — eliminates manual pretreatment and reduces turnaround time
• Intelligent reagent management — no-pause reagent loading and automatic empty-bottle discard to support continuous operation

Reliable Performance

• Low minimum reaction volume — 70 μL reaction volume reduces sample consumption and operating cost
• Ultrasonic cleaning mechanism — reduces cross-contamination risk for sample probes
• Negative-pressure washing system — residual volume in reaction cuvettes < 1 μL
• Accurate reagent pipetting — detection of bubbles and suction failures for reliable aspiration

Intelligent Software System

• One-click batch maintenance
• Automatic pre-dilution and automatic re-test
• Automatic sleep mode and reagent volume prediction
• HIL index monitoring and other laboratory management functions

Flexibility & Scalability

• Integration capability with MAGLUMI X10 and X8
• Interfaces for Laboratory Automation Systems (TLA/LAS)

Technical specifications

• Total throughput: up to 3000 T/H (Biochemistry: 2000 T/H; ISE: 1000 T/H)
• Sample positions: 300
• Reagent positions: 200
• Minimum reaction volume: 70 μL
• Residual volume in reaction cuvettes after washing: < 1 μL
• Supports whole blood HbA1c testing with automated hemolysis
• Independent sample arms and detection channels for ISE and biochemistry
• Ultrasonic cleaning mechanism for sample probes
• Negative-pressure washing system
• Intelligent reagent management (no-pause loading, empty-bottle discard)
• Software features: batch maintenance, automatic pre-dilution, sleep mode, reagent volume prediction, HIL monitoring, automatic re-test
• Integration capability: MAGLUMI X10/X8 and Laboratory Automation Systems (TLA/LAS)
