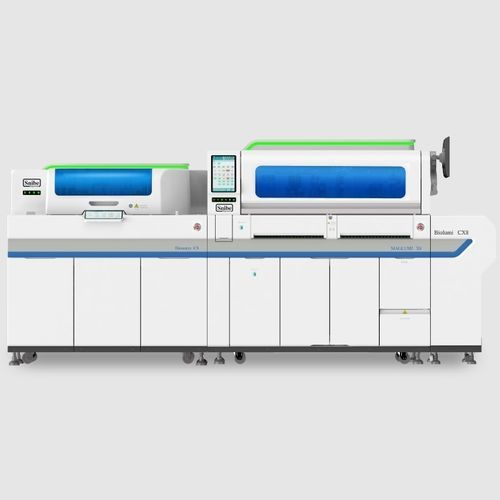

Automated immunoassay analyzer Biolumi CX8

for clinical diagnosticmagnetic bead-basedSTAT

Overview
Biolumi CX8 is an integrated system combining Biossays C8 (biochemistry) and MAGLUMI X8 (CLIA immunoassay) to perform biochemical and immunological testing simultaneously. The modular platform delivers ultra-high throughput in a minimal footprint and can be configured to laboratory needs, supporting up to four instruments in a single connected solution.

Key Highlights

• Integrated biochemical and immunological testing (Biossays C8 + MAGLUMI X8).
• High throughput with a small footprint, optimized for space use of 3.8 m².
• Modular, customizable configuration: supports up to two C8, two X8 and one Decapper module; up to 4 instruments can be connected.
• Compatible with Laboratory Automation systems (TLA/LAS) for expandability.

Benefits

• Efficiency: high throughput in a compact layout to increase laboratory productivity.
• STAT sample priority: dedicated processing workflow for emergency samples.
• Reliability: immunoassay module uses ABEI labelling and magnetic microbeads separation; biochemistry module uses high-quality grating technology for stable measurements.
• Convenience: intelligent software for real-time monitoring with HIL testing, batch maintenance and remote diagnosis; auxiliary touchpad for reagent and consumable handling; Snibe iXLab Vision Smart Screen for process visualization.
• Flexibility: multiple configurations to fit medium to large laboratory demands and TLA expandability.

Included Technologies & Functionalities

• Integrated operation of Biossays C8 (biochemistry) and MAGLUMI X8 (CLIA immunoassay).
• Support for up to two C8, two X8 and one Decapper module in one integrated solution.
• ABEI labelling and magnetic microbeads separation for immunoassay accuracy.
• High-quality grating technology in the biochemistry module for measurement stability.
• Intelligent software features: real-time monitoring, HIL testing, batch maintenance, remote diagnosis.
• Auxiliary touchpad for reagent and consumable management and Snibe iXLab Vision Smart Screen for process visualization.
• TLA/LAS connectivity for Total Laboratory Automation expandability.

Caractéristiques / Spécifications techniques

• Product type: integrated system combining biochemistry and immunoassay analyzers.
• Model composition: Biossays C8 + MAGLUMI X8.
• Floor footprint: optimized for lab space with 3.8 square meters.
• Maximum integrated modules: up to two C8, two X8 and one Decapper module; supports up to 4 instruments connected.
• Throughput: ultra-high throughput (no numeric throughput specified).
• Sample handling: STAT sample priority / emergency sample processing supported.
• Immunoassay technologies: ABEI labelling; magnetic microbeads separation.
• Biochemistry technologies: high-quality grating technology.
• Software & IT: intelligent monitoring software with HIL testing, batch maintenance and remote diagnosis; Snibe iXLab Vision Smart Screen.
• Expandability: capable of linking with Laboratory Automation (TLA/LAS).
