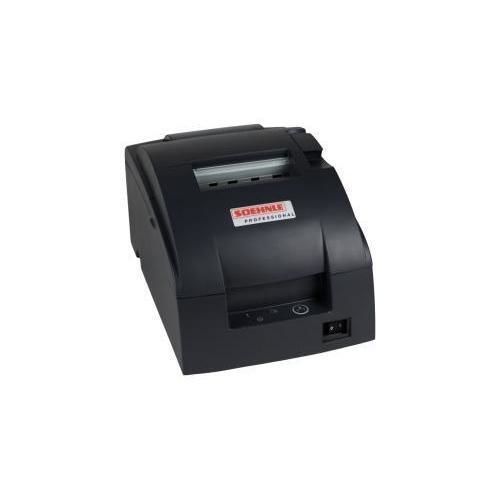

Matrix printer 2795.14

receiptfor papercompact

Short description

• Fully graphics-capable 9-pin dot-matrix printer
• Print speed: 4.7 lines/s
• Paper width up to 76 mm
• With tear-off edge
• User-friendly paper handling

Features / Applications

• Suitable for printing weighing slips, reports and graphs
• Two-colour printing (black/red) — switchable per line
• Simple graphics printing supported (e.g. logo)
• Direct connection to Soehnle Professional terminals
• RS232 interface, compatible with Soehnle Professional terminals
• Low space requirement with storage space for external power supply under the printer
• Sensor for 'low paper supply'
• Compact design for use in industrial workstations
• Operating temperature: 0°C to +50°C
• Mains operation: 100–240 V AC / 50–60 Hz; external 24 V power supply included (1.5 m cable)

Accessories (excerpt)
2550.03.007 | Printer data cable RS 232 for terminals 3800, 3810, 3820, 3010, 3025, 3035, 3005, cable length: 2 m | 62.00
2550.00.009 | Printer data cable RS 232 for terminals 3800, 3810, 3820, 3010, 3025, 3035, 3005, cable length: 2–10 m | 100.00
2500.02.001 | Paper rollup device (retrofit kit) | 57.00
5751.01.004 | Existing print format | 35.00
5751.01.001 | Customer-specific print format design | 320.00
2500.01.004 | Paper roll width: 76 mm, single VPE 10 pcs. | 29.00
2500.01.005 | Paper roll width: 76 mm, double VPE 10 pcs. | 52.00
2500.15.004 | Ink tape for printer 2795.14, colour black/red | 18.00


Technical specifications

• Printer type: 9-pin dot-matrix, fully graphics-capable
• Print speed: 4.7 lines/s
• Paper width: up to 76 mm
• Two-colour printing (black/red), switchable per line
• Graphics printing supported (e.g. logo)
• Interface: RS232 (compatible with Soehnle Professional terminals)
• Power supply: mains 100–240 V AC, 50–60 Hz; external 24 V power supply included (cable length 1.5 m)
• Low paper sensor: yes
• Paper handling: tear-off edge; optional paper rollup device (retrofit)
• Operating temperature: 0 °C to +50 °C
• Design: compact for industrial workstations; storage space for external power supply under the printer
• Dimensions (variant indicated): 248 x 160 x 139 mm
