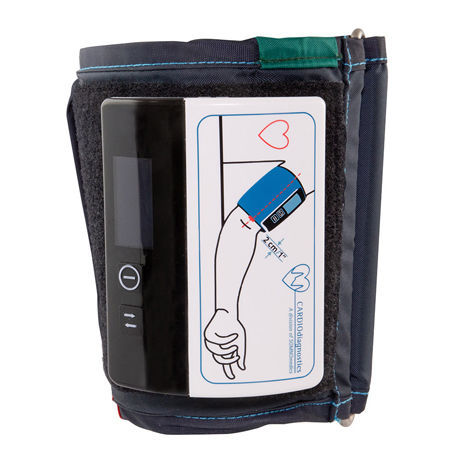

Automatic blood pressure monitor ABPMpro

wearablewith USB portwith adult cuff

The ABPMpro is a compact, oscillometric, long-term blood pressure (BP) monitor.

Product features:
The compact monitor is attached directly to the upper arm cuff using a sliding bracket, making it very comfortable for the patient to wear.
Internal sensors for activity and body position enable a sleep-wake estimation for a more accurate classification of dipping/non-dipping as well as the correlation of blood pressure to activity (during the day) and body position (at night).
Recording of the cuff inflation pressure curve and motor activity enables quality control of the measurements by detecting artifact-prone pumping processes.
Measurements during the inflation and/or deflation process are possible, thus increasing the information content through double measurement values.
Avoiding incorrect measurements through an adjustable tone before the start of the inflation process.
Adjustable measurement intervals for day and night time (single measurement; every 3, 5, 10, 15, 20, 30, 60, 90, 120 minutes).

The ABPMpro is validated according to ISO 81060-2:2018.

ABPMPro can be expanded with an external 3-channel ECG sensor for a Holter ECG and a plethysmography sensor for pulse wave analysis. Both sensors together enable continuous blood pressure measurement based on pulse transit time (PTT). (See sets ABP110 and ABP120)


Royalty-free evaluation software:

Standard view:
Quick overview of the analysis data of the 24-hour blood pressure profile

Advanced view:
Assignment of blood pressure values to day/night/sleeping times; display of all measurement data to verify the measured values: systolic/diastolic blood pressure, mean arterial pressure, pulse pressure, body position, activity
Classification of blood pressure values by activity
Individually customizable reports
Measurement data can be displayed graphically and in tabular form


Technical details:
Size / weight (without cuff): 101 x 75 x 24 mm, 138 g (including battery)
Measurement pressure range: systolic 60 - 230 mmHg, diastolic 40 - 130 mmHg
cuff pressure: 0 - 300 mmHg
power supply: Li-Ion battery (1,800 mAh), up to 48 h recording time
cuff sizes: S (18 - 24 cm), M (24 - 34 cm), L (34 - 46 cm)
data acquisition: 16 - 24 bit signal resolution

Included in delivery:
Basic device ABPMpro,
1x cuff, size M without int. ECG,
Charger incl. USB cable,
Measuring tape,
Software (license-free),
Carrying bagThe ABPMpro is a compact, oscillometric, long-term blood pressure (BP) monitor.
