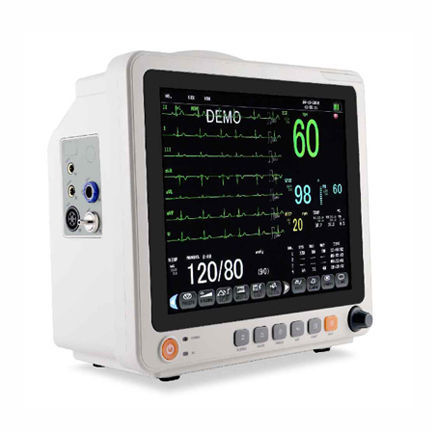

Portable patient monitor SM-12B

ECGheart ratepulse rate

Touch-screen for easy operation 12 . 1 inch high resolution color TFT display USB interfaces support easy software upgrade and data transfer Compatible with Central Monitoring System ( CMS ) Three Working Modes : Monitoring , Surgery and Diagnosis. Simple and friendly operating display interface. Multi-display modes suitable for different applications: Standard Interface , Large font , ECG Standard Full Display , OXY, Trend Table, BP Trend Built-in high capacity battery up to 3 hours of continuous work VGA output for external display Lead Mode : 5 Leads ( I , ll , Ill , AVR , AVL , AVF , V ) Gain : 2.5mm / mV, 5.0mm /mV , 10mm /Mv, 20mm /mV Heart Rate : 15-300 BPM ( Adult ) ; 15-350 BPM ( Neonatal ) Resolution : 1 BPM Accuracy : ± 1% Sensitivity > 200 uV ( Peak to peak ) ST measurement range : -2.0 ~+ 2.0 Mv Accuracy : -0. 8mV~+ 0. 8mV : ± 0. 02mV or ± 10% , which is greater Other Range : unspecified Sweep speed : 12.5 mm / s , 25mm / s , 50mm / s Bandwidth: Diagnostic : 0.05~130 Hz Monitor : 0.5~40 Hz Surgery : 1~20 Hz SPO2 Resolution : 1% Accuracy : 70%~100% ( ± 2 % ) Resolution : 1 BPM Accuracy : ± 3 BPM
