Medical device tester SONO-PR 10

ultrasoniccompactdigital

Overview

• Cost-effective air-coupled ultrasonic testing solution for non-destructive inspection
• Designed for lightweight and difficult-to-couple components where contact methods are not applicable
• Enables non-contact testing without coupling fluids
• System frequency range up to 10 MHz (SONO-PR 10)

Ultrasonic probes for non-contact testing

• Compatible with SONOSCAN CFC / CF air-coupled probes

Advantages

• Cost-effective entry into air-coupled ultrasound testing
• Wide range of material and inspection applications
• Flexible configuration for different test scenarios
• Simple, non-automated system for manual or semi-manual inspections
• Broad air-coupled ultrasound bandwidth
• Operation possible without a connected PC via integrated touch panel

Applications

• Non-contact ultrasonic inspection for defect detection and material characterization
• Suitable for foams, metals, plastics and ceramic materials
• Building material testing: bricks, composite panels, concrete and wood
• Inspection of honeycomb and sandwich structures with varying core and cover layers

Components / Key features

• Air-coupled probes — SONOTEC piezo-composite technology with element focusing for maximum resolution and sensitivity
• Up to 4 channels — independent transmitter and receiver channels with configurable square-wave burst pulser and low-noise preamplifiers
• Interfaces — digital interface options to extend functionality
• No PC required — device operation via integrated touch panel

Technical Data (summary)
General Data:

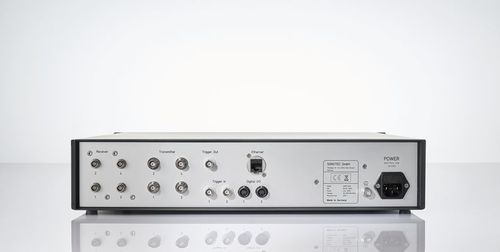

19-inch unit containing ultrasonic transmitter and receiver
Operating Temperature: 5 °C to 40 °C
Configuration Interface: 1 Gbit LAN
Protection Class: IP20

A/D Converter:
Resolution: 14 Bit
Scan Rate: Up to 50 MS/s

Pulser:
Number of Channels: 1 to 4
Pulse Height: 10 V to 500 V
Frequency Range: 40 kHz to 10 MHz
Type: Square-wave burst (unipolar positive) with up to 20 pulses

Receiver:
Number of Channels: 1 to 4
Frequency Range: 35 kHz to 15 MHz
Gain with integrated CFC preamplifier: 20 dB to 140 dB, 0.5 dB increments
Gain with standard external preamplifier: 0 dB to 120 dB, 0.5 dB increments
Noise: 1 nV/√Hz

Interfaces:
Inputs: multi-channel digital and analog
Outputs: multi-channel digital

Characteristics / Specifications

• Form factor: 19-inch transmitter/receiver unit
• System bandwidth: up to 10 MHz
• Pulser frequency range: 40 kHz – 10 MHz
• Receiver frequency range: 35 kHz – 15 MHz
• Channels: 1–4 (transmit & receive)
• Pulser voltage: 10 V – 500 V
• Integrated receiver gain: 20 dB – 140 dB (0.5 dB steps)
• External preamp gain: 0 dB – 120 dB (0.5 dB steps)
• Receiver noise: 1 nV/√Hz
• Configuration interface: 1 Gbit LAN
• Operating temperature: 5 °C to 40 °C
• Protection class: IP20
