Provides DC power for compatible Sony medical monitors

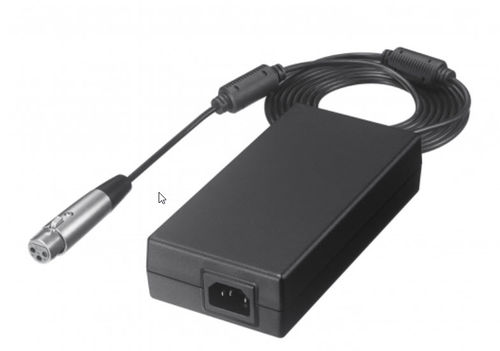

The AC-120MD is an AC adapter that's designed for use with these compatible Sony LCD medical monitors only:
LMD-2735MD/2735MC (AC-120MD available as optional accessory)
LMD-2435MD/2435MC (AC-120MD available as optional accessory)
LMD-2765MD/2765MC (AC-120MD included as standard with monitor)
LMD-2760MD/2760MC (AC-120MD included as standard with monitor)
The adapter can operate wherever an AC mains outlet (100-240V, 50/60Hz) is available. It provides a regulated 24V DC output suitable for powering the monitors as detailed above.
Power
AC IN: 100 V-240 V, 50/60 Hz, 2.5 A-1.0 A
DC OUT: 24 V 6.25 A
Operating Temperature
0 °C to 35 °C (32 °F to 95 °F)
Operating Humidity
30% to 85% (no condensation)
Storage/Transport Temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Storage/Transport Humidity
20% to 90%
Operating/Storage/Transport Pressure
700 hPa to 1060 hPa
Dimensions (W x H x D) *1
170 × 40 × 85 mm
6 3/4 × 1 5/8 × 3 3/8 inches
Mass
1.2 kg
2 lb 10 oz
Supplied Accessories
Instructions for Use (1)
Service Contact List (1)
