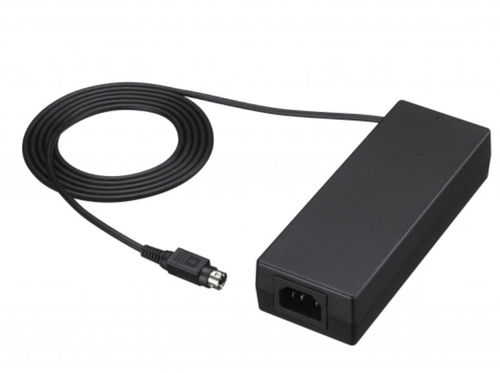

The AC-81MD is an AC adaptor that is intended for use with these compatible Sony medical products* only:
MCC-3000MT, NU-IP40S, NU-IP40D, UP-D711MD (AC-81MD available as optional accessory)
HVO-500MD/500MD(Surgical Version), HVO-550MD/550MD(Surgical Version), HMS-3000MT (AC-81MD included as standard)
The adaptor can operate wherever an AC mains outlet (100-240V, 50/60Hz) is available. It provides a regulated 24V DC output (3.3A max.) suitable for powering the products as detailed above.
Includes AC power cable and DC cable (1.8m) for connection to device.
PowerAC IN:
100 V - 240 V、50/60 Hz, 1.0 A - 0.5 A
DC OUT:
24 V 3.3 A
Operating Temperature
0 °C to 40 °C (32°F to 104 °F)
Operating Humidity
20%~ 85% (no condensation allowed)
Storage/Transport Temperature
-20 °C to +60 °C (-4 °F to +140 °F)
Storage/Transport Humidity
20% to 90% (no condensation allowed)
Operating/Storage/Transport Pressure
700 hPa ~ 1,060 hPa
Dimensions (W x H x D) *1
60 × 35 × 160 mm(Not incl. projecting parts)
2 3/8 × 1 7/16 × 6 3/8 inches (Not incl. projecting parts)
Mass
400 g (AC adaptor only)
14 oz. (AC adaptor only)
Supplied Accessories
Instructions for Use (1)
Service Contact list (1)
AC power code (supplied at local) (1)
