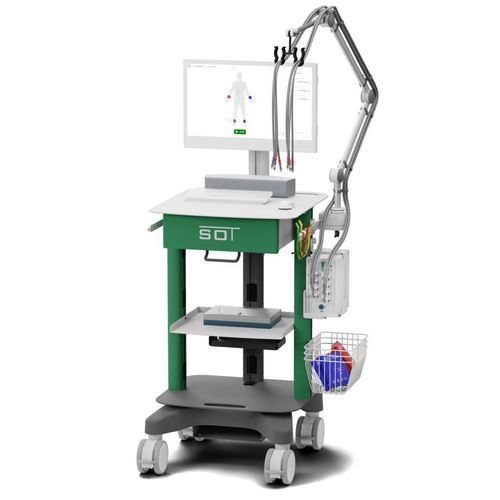

ABI doppler AngE™ COMPLETE

peripheraltrolley-mountedwith sphygmomanometer

Fully Equipped Vascular Diagnostics System<br><br>Test Protocols<br>Included or extendable measurement methods.<br><br>Segmental 8-Channel<br>Swiss Method<br><br>Segmental Pressure<br>SBP – Segmental Blood Pressures<br><br>Doppler<br>Bidirectional 4 and 8 MHz<br><br>Vascular Screening<br>ABI, TBI, PWI™ and Score<br><br>VOP<br>Venous Occlusion Plethysmogr.<br><br>ABI<br>Ankle Brach<br><br><br>8-Channel Segmental Oscillography<br>Perform a simultaneous measurement on up to 8 cuff positions simultaneously to efficiently localize the level of an occlusion.<br><br>Venous Occlusion Plethysmography (VOP)<br>Assess the venous status of the legs in lying position by performing plethysmographic measurements, such as Reactive Hyperaemia Test and Dynamic Venous Air Plethysmography, with cuffs only.<br><br>PWI™ – Pulse Wave Index<br>The Pulse Wave Index is a clear and sensitive parameter based on pulse wave shape to determine the severity of blood flow disorders in significantly less time.<br><br>Micro- and Macrocirculation<br>Assess the Micro- and Macrocirculation to estimate the Wound Healing success.<br><br>Stress Tests<br>Record the patients' blood circulation after passive and active stress tests, such as knee bends and toe tip stands, for effective clarification.<br><br>Venous Function Measurements<br>AngE Phlebo calculates pump volume (V0), venous fill time (T0) and venous half-life time (T50) automatically. The results are stated in a simple traffic light display and allow for a fast venous valve incompetence diagnostics.<br><br>Arterial Blood Flow Tests<br>By applying the optical sensors on toes or fingers, arterial circulation disorders such as Morbus Raynaud or TOS can easily be assessed.<br><br>Pulse Wave Velocity and HRV<br>Determine Pulse Wave Velocity (PWV) and Heart Rate Variability (HRV) by recording the ECG-Trigger.<br><br>Doppler ABI<br>Use the 8 MHz or 4 MHz doppler probes to assess and record the blood flow vessel by vessel.<br><br>Detailed Report Printout<br>The one-page report combines all important details about the patient’s vascular status on a single page at the touch of a button.<br><br>Comprehensive Software<br>The AngE-System comes with a sophisticated macOS and Windows software featuring patient management, measurement analysis, DICOM/HL7 interfaces and many more.<br><br>Flexibility<br>A modular design ensures a tailor-made and future-proof investment.<br><br>8-Channel Segmental Oscillography<br>The simultaneous recording of up to eight channels allows for the localization of occlusions as well as the automated calculation of pulse wave parameters within 45 seconds.<br><br>Finger & Toe Pressure<br>The OPO module allows performing optical pulse oscillography to determine blood flow in fingers and toes as well as to conduct arterial pressure measurements.<br><br>Ultrasonic Doppler<br>The AngE combines ultrasonic probes with pneumatic cuffs to allow Doppler pressure measurements with up to 16 tracks. The Doppler indices can be displayed at a glance on a dedicated overview report.<br><br>Venous Air Plethysmography<br>The Air VVP allows conducting plethysmographic measurements by using cuffs only. The often used mercury-filled strain gauges become unnecessary.<br><br>Main Measurement-Parameters<br><br><br>oABI (oscillometric Ankle-Brachial-Index) TBI (Toe-Brachial-Index) PWI™ (Pulse-Wave-Index) HRV (Heart-Rate-Variability)<br>Central PWV (Pulsewave Velocity) Toe-Pressure / Finger-Pressure Skin-Temperature V0 (Venous Pump Volume)<br>T0 (Venous Fill-Time) T50 (Venous Half-Life Time) Doppler-ABI RI (Reflexion Index)<br>SI (Stiffness Index) Venous Peak-Flow Arterial In-Flow Invasive Compartment-Pressure<br>
