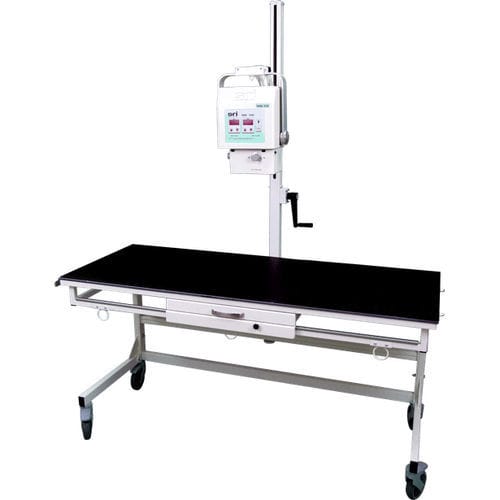

Digital veterinary X-ray system VXS-115

digitalmobile

Product overview
Source-Ray, Inc. introduces the VXS-115, a US-made veterinary X-ray system for small animals with options for field use. The unit combines generator, tube stand and table in a compact single-package layout. Plug-and-play operation and portability enable deployment in clinics, ambulatory practice and large-animal support without special power infrastructure.

Key advantages

• Plug-and-play operation from a standard wall outlet; no special power required
• Compact footprint and easy to move within clinical spaces for cleaning or relocation
• Lubrication-free sliding system allows Bucky and tube stand to slide along the table
• Supports a new generation of wired and wireless DR detectors
• Simple, easy-to-use digital X-ray acquisition software
• Generator and DR detector removable for field applications such as equine or bovine use

Wired / Wireless X-ray detector

• Improved DQE for better image quality per dose
• Water resistant design for clinical environments
• Lightweight and durable construction
• Auto exposure detection for simplified workflow
• Image preview available seconds after exposure

User-friendly X-ray acquisition software

• Intuitive GUI designed for clinical operators
• Operator-focused console layout
• Fully integrated acquisition and image handling solution
• Supports multiple clinical workflows and protocols
• Can be integrated into existing hospital or clinic networks

Specifications

• Model: VXS-115
• Manufacturer: Source-Ray, Inc.
• Country of manufacture: USA
• Single-package design for compact installation
• Plug-and-play operation using a standard wall outlet
• Portable: easy to move within clinical spaces
• Lubrication-free sliding system for Bucky and tube stand movement
• Generator type: High-frequency microprocessor-controlled generator
• kVp range: 40–100 kVp
• mA range: 15 fixed (constant mA, independent of kV or time)
• mAs range: 0.15–60
• Supports wired and wireless DR detectors with improved DQE
• Detector attributes: water resistant, lightweight, durable, auto exposure detection, fast image preview
• Simple digital acquisition software with intuitive GUI and operator-friendly console
• Generator and DR removable for field use (e.g., equine and bovine applications)
