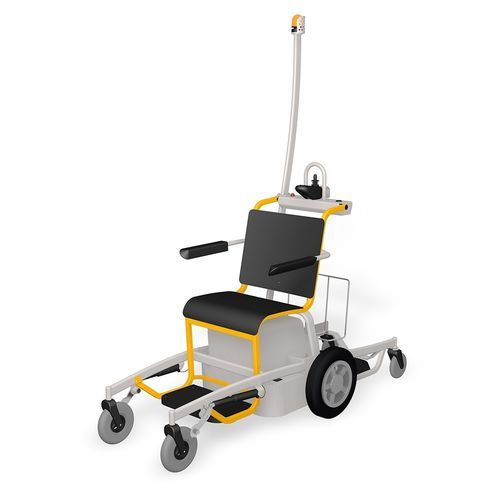

Electric transfer chair E-Mobby

ergonomicwith legrestwith armrests

Product overview
The electric transport chair E-Mobby is designed to collect and transport multiple Mobby 1.1 units and passengers in busy environments. It connects with standard Mobby chairs via the Link&Go system to improve operational efficiency and on-site throughput.

Electric Link&Go mechanism

• Front-mounted electric hoist lifts the rear wheels of linked Mobby 1.1 units so only front caster wheels contact the ground, enabling the collection and transport of several units in a train.

Safe user-friendly dashboard

• Dashboard access secured by magnetic plugs for authorised personnel to prevent unauthorised use.
• Driver controls include an ergonomic joystick for steering and driving and a hoist switch to link standard Mobby units with the E-Mobby.

Large-scale operation

• Turns around the axis of its rear wheels for precise manoeuvring in tight spaces, suitable for transporting trains of standard Mobbys or multiple passenger Mobbys through busy environments.
• High-capacity batteries designed to support a full work shift.

Customizable design & safety

• Optional beacon light and presence awareness alarm to enhance safety in crowded areas.
• Durable stainless-steel frame with customizable color coating to match company livery.

Key features

• Operator dashboard with magnetic plug access control.
• Fold-up driver platform with removable extension.
• Electric Link&Go linking for effortless connection with Mobby 1.1 units.
• Presence awareness beacon for bystanders.
• High-performance motors and long-lasting batteries.
• Fully electric, low-emission operation.
• On-board charging cable with optional regional plug.
• Custom color coating options; unpainted parts in stainless steel.

Versatile eco-friendly transportation

• Electric drive powered by a robust battery pack for reliable, environmentally friendly operation.
• On-board charging with optional regional plug and fast-charge capability to reduce downtime.
• Designed to lower operational carbon footprint while maintaining transport efficiency.

Technical specifications

• Weight: 154.6 kg
• Overall height: 198.9 cm
• Overall length: 177.5 cm
• Overall width: 70 cm
• Load capacity: 450 kg
• Link&Go lift capacity: 150 kg
• Puncture-proof non-marking tyres
• Ground clearance: 4.3 cm
• Effective seat depth: 400 mm
• Effective seat width: 500 mm
• Electromagnetic brake system
• Drive system: DynamicControls (LinX)
• Motors: Brushed DC 24V 1000W (2x)
• Turning circle: 177.5 cm, 360°
• Batteries: standard 2 × lithium‑ion (120 Ah @ DC‑25.6 V); optional 2 × AGM lead (100 Ah @ DC‑24 V)
• Charging: on-board cable with optional regional plug. Input: 240 V ~ 720 W, 60 Hz. Output: 24 V ~ 27.1 A DC (~650 W)
• Standard max forward speed: 8 km/h
• Standard max reverse speed: 2 km/h
• Max slope: 8%
• Available colours/options: Red (RAL 3020), Yellow (RAL 1023), Orange (RAL 2009), Blue (RAL 5005), Green (RAL 6016), Custom (RAL)
