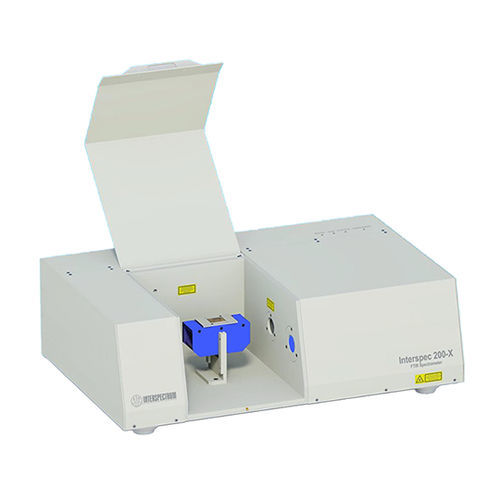

Benchtop laboratory FTIR spectrophotometer
Our Benchtop laboratory FTIR spectrophotometer model 200X represents a cost effective Fourier Transform Infrared Instrument. It employs a number of unique features that ensure high performance from a compact instrument. The Interspec 200-X measures just 59 x 39 x 19 cm and is regarded as one of the most compact and versatile infrared FTIR spectrophotometers currently available. The design of the 200-X is unique both in terms of optical design, the software and firmware designed specifically to significantly reduce overall analytical times.
The interferometer geometry is a new compact Michelson self compensating optical system, that eliminates many of the optical alignment problems found in conventional type optical interferometers. The Interspec 200-X FTIR design avoids the use of conventional corner cube optics and dynamic alignment. In practice this means that the instrument can be used in the Research or QC laboratory, in any industrial or university environment.
All Interspec FTIR instruments offer high SN ratios and can provide SNR up to 15000:1. Resolution in the infrared is available 1 cm-1 and programmable up to 32 cm-1 (option 0.5 cm-1). The overall wavelength range is 7000 to 400cm-1 (IR) or 14000 to 5800 cm-1 or 9000 to 3850-1 (NIR).
The Sample Compartment
As you will see the sample compartment is very large and can accommodate all of the sample handling requirements relating to FTIR spectroscopy. This unique compartment will also accommodate the wide range of accessories supplied by specialist accessory manufacturers.
