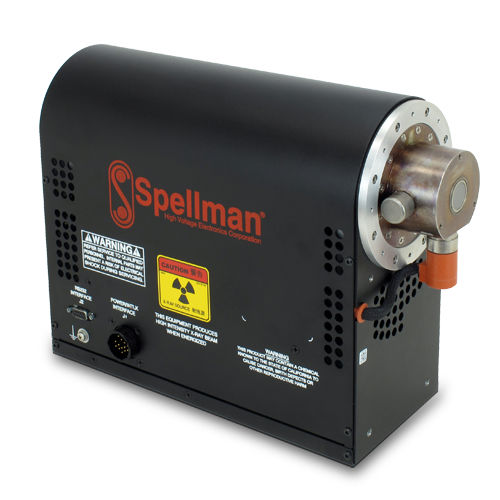

Mammography X-ray generator uXRB130P65

Integrated X-Ray Tube and Control Electronics in One Compact Assembly Standard RS-232 Digital Interface Offers Access to Diagnostics and Operating Logs Standard Windows Test GUI 7 Micron Focal Spot for Narrow Beam 8 Micron Focal Spot for Wide Beam 10mm/14mm Spot to Window Spacing Provides High Geometric Magnification Spellman’s μXRB130P65 microfocus Monoblock® X-Ray sources are designed for high resolution imaging applications powering its internal microfocus X-Ray tube up to 130kV @ 65W. Features like 24Vdc input voltage, small package size and standard RS-232 digital interface simplify integrating the μXRB130P65 into your X-Ray system. The small, round focal spot size, optimized over the range of operating voltage, and high magnification, combined with stable high intensity output provides distortion free, superior quality 2D and 3D images. Typical applications Industrial X-Ray: Circuit board and electronic component inspection High resolution Non Destructive Testing of metal and plastic parts Micro CT for Industrial applications Battery inspection Medical X-Ray: Micro CT for life sciences applications SPECIFICATIONS Options: WB Wide Beam ET Extended Tube (wide beam only) LW Light Weight Specifications: Narrow Beam Benefits (Standard): The small round spot is optimized over the range of kV and power to provide distortion free images. Operated at 4 watts yields a 6 micron spot for high resolution imaging. The 14mm spot to window spacing offers high geometric magnification.
