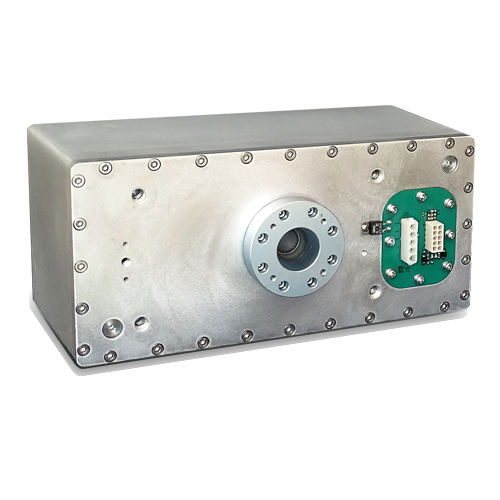

Interventional fluoroscopy X-ray generator MMB125PN3.5

ntegrated HV Supply, Filament Supply, X-Ray Tube, Beam Port and Control Electronics Compact & Lightweight <1ms Rise Time is Ideal for Extremities Specifically designed for the C-Arm OEM Spellman’s MMB125PN3.5 Medical Monoblock® with <1ms rise time is ideal for extremities, specialized applications and vascular imaging. Benefit from Spellman’s 70 plus years of high voltage innovation with this MMB125PN3.5 Monoblock® X-Ray source specifically designed for the C-Arm OEM. Our advanced technology and design expertise in conjunction with our depth of manufacturing capabilities position Spellman as the wise choice for your Monoblock® requirements. Spellman’s Ultra-Fast MMB Series utilizes our unique technologies that increases the quality of the X-Ray beam and significantly reduces patient dose. Pulsed Fluoroscopy enhances imaging of dense and complex anatomy to further support dose management. With a rise time of <1ms, Spellman’s MMB Series is among the fastest in the industry. SPECIFICATIONS X-Ray Characteristics: Focal Spot: 0.5mm for small focus 1.6mm for large focus Target Angle: 16° Target Material: Tungsten Beam Filter: 0.8mm Al Beam Geometry: Refer to line drawing X-Ray Leakage: Less than <1mGy/hour @ 1meter from tank surface. Maximum Filament Current: 4.3A Filament Inverter Switching Frequency: 20kHz Anode Heat Content: 35.5kJ Maximum Anode Distance Between Focal Spot to X-Ray Output Window: 45mm Focal Spot Position: Refer to outline drawing, additionally it is marked on tank cover.
