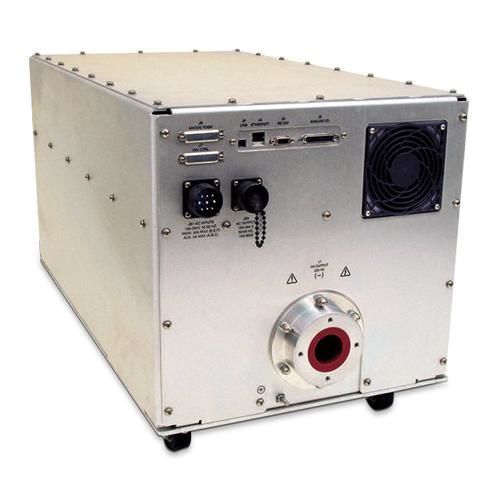

Multipurpose radiography X-ray generator XRV series

equipment-mounted

Overview
The Spellman XRV Series are compact industrial X-ray generator power supplies covering 1.8 kW to 6.0 kW output power and DC output voltage ranges from 5 kV up to 160 kV/225 kV and bipolar variants to ±160 kV/±175 kV/±225 kV. Models are available in negative, positive or bipolar configurations and are intended for OEM integration in industrial inspection, security scanning and related X-ray systems.

Key features

• Models: 160 kV, 225 kV, 320 kV, 350 kV and 450 kV families
• Output power options: 1.8 kW, 3.0 kW, 4.0 kW, 4.5 kW and 6.0 kW
• Power factor corrected AC input (active PFC for single-phase models; passive for 6.0 kW three-phase)
• Integrated dual filament supplies with closed-loop emission control (0–6 A @ up to 10 Vdc)
• Digital and analog control: USB, Ethernet, RS-232 and 25-pin analog interface
• High-voltage output connectors: R24 or R28 (single or dual for bipolar models)

Applications

• Non-destructive testing (NDT) and industrial inspection
• X-ray scanning and security screening
• OEM X-ray system integration

Model selection (examples)

• XRV160*1800 — 160 kV, 1.8 kW, positive or negative
• XRV160*6000 — 160 kV, 6.0 kW, positive or negative (208 V or 400 V variants)
• XRV320P&N1800 — ±160 kV, 1.8 kW, bipolar
• XRV450P&N4500 — ±225 kV, 4.5 kW, bipolar

Technical specifications (selected)

• Output voltage ranges: 5 kV up to specified family voltage (160/225 kV) or ± configurations for bipolar models
• Output current: model dependent (typical 0–30 mA; some up to 0–50 mA)
• Output voltage accuracy: 0.25%; stability: ≤0.1% over 8 hours after 1 hour warm-up (typical)
• Ripple/noise (p-p): as low as <0.025% (model dependent)
• Dimensions examples: XRV160 series single unit 256 × 436 × 609 mm; XRV225 series single unit 404 × 432 × 780 mm
• Weight examples: single units 68–109 kg; dual/bipolar configurations up to ~218 kg

Control & interfaces

• Analog interface (25-pin D): kV/mA program and monitor, filament controls, interlocks, faults
• Digital: RS-232 (9-pin), Ethernet (RJ45), USB (standard)
• Control software: Windows GUI example provided; OEM integration supported

Environmental & compliance

• Operating temperature: 0°C to +50°C; storage: -40°C to +85°C
• Humidity: 20%–85% RH, non-condensing; cooling: forced air
• Regulatory: compliant with EEC EMC and Low Voltage Directives; RoHS compliant; product file references apply

Notes
Specifications are subject to change. Refer to the Spellman XRV datasheet for complete and up-to-date technical details.
