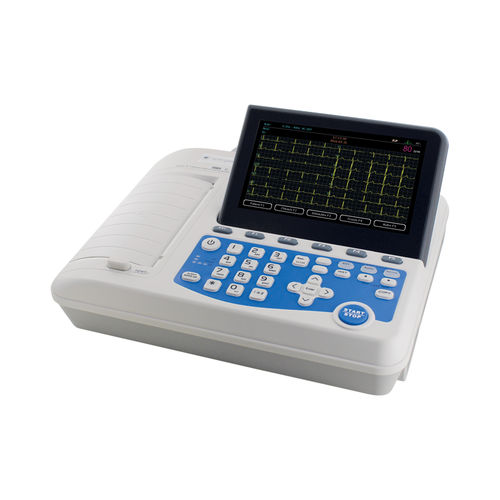

Resting electrocardiograph Cardiomate 3

12-channel3-channel6-channel

Love at first sight The Cardiomate ECGs have a large 7 or 10 inch LCD screen for perfect curve identification. They allow the simultaneous display of 3, 6 or 12 diversions for a customized and accurate diagnosis. They are adjustable and adaptable to any situation. Diversion Cardiomate 3 : 12 standard diversions Cardiomate 6 : 12 standard diversions Cardiomate 12 : 12 standard diversions Acquisition mode Cardiomate 3 : 12 silmutaneous diversions Cardiomate 6 : 12 silmutaneous diversions Cardiomate 12 : 12 silmutaneous diversions Measurement range Cardiomate 3, 6 and 12 : +- 5mVpp Time constant Cardiomate 3, 6 and 12 : > 3.2s Results rate Cardiomate 3, 6 and 12 : 0.05Hz-150Hz (-3dB) Sensitivity Cardiomate 3, 6 and 12 : 2.5, 5, 10, 20 mm/mV Input resistance Cardiomate 3, 6 to 12 : >= 50MΩ Input current circuit Cardiomate 3, 6 to 12 : <0.005μA Noise attenuation Cardiomate 3, 6 and 12 : <15μVp-p Filters Filter EMG : 25Hz / 30Hz / 40 Hz Filter DFT : 0.05 Hz / 0.15 Hz / 0.25 Hz / 0.32 Hz / 0.5 Hz / 0.67 Hz Filter AC : AC 50/60Hz Filter low pass : 75 Hz / 100 Hz / 150 Hz Recording speed 5mm/s , 6.25mm/s, 10 mm/s, 12.5 mm/s, 25mm/s, 50mm/s Sampling frequency 1000hz by canal & 10000Hz with pacemaker
