Chemical cabin EFBS series

exhaustlaboratorybenchtop

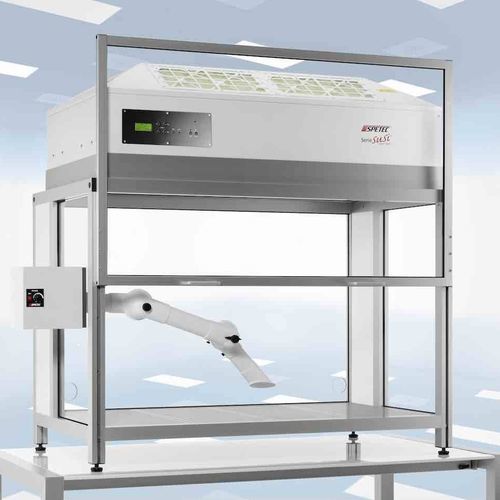

The EFBS series laminar flow box also features an additional acid-resistant extraction system. The telescoping extraction arm, which can be positioned in three dimensions, can be adjusted precisely so that gases and vapours are extracted exactly where they are generated. There is practically no mixing of the vapours being extracted with the clean air flowing down from above, since the flow velocity at the tip of the extraction tube is higher than that of the clean air flow. The exhaust system has a maximum capacity of 1 cubic meter per minute and is continuously adjustable. The EFBS series devices are used where clean room conditions are required, but where these conditions are at the same time impaired by vapours, combustion gases, etc., e.g. AAS graphite tubes, ICP/MS, and laboratory benches used for chemical analysis. Control panel The flow velocity can be controlled in 8 steps. The controls include the “night reduction” (eco) mode to save energy costs, and the “MAX” function to clean the workstation, parts, or equipment if applicable. 8 level adjustment of the flow velocity with night reduction and flushing function LCD display with selected flow velocity in m/second Automatic flow adjustment with filter replacement indicator (optional) LED fault indicator Interior light switch on the control panel (optional) Service and interval indicator, dependent on the usage period
