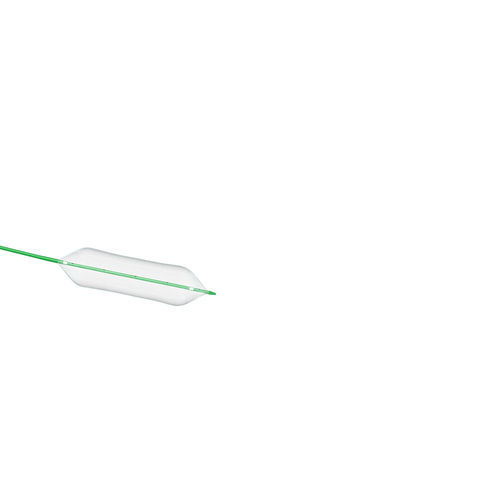

Dilatation catheter Aeris®

laryngotrachealballoonfemale

Overview
Developed by an airway surgeon, Aeris® addresses slippage in airway stenosis. The exclusive non-slip bone-shaped balloon with hubs on each end ensures safe, controlled dilation under endoscopic visualization. The catheter is designed to provide uniform radial expansion while minimizing risk during airway dilation.

Key Features

• Single-lumen catheter — enables fast inflation and deflation.
• Broad range of balloon sizes — suitable for pediatric and adult anatomy (5–18 mm).
• High-pressure options — 5–10 mm balloons rated up to 17 bar; 12–18 mm balloons rated up to 10 bar.
• Exclusive non-slip (bone-like) balloon shape with end hubs to prevent slippage during dilation.
• Color-coded Luer-lock connectors — match inflation device bar settings to reduce improper inflation.
• Sold in single packs to simplify hospital inventory management.

Procedure / Use
Under endoscopic visualization, pass the Aeris® balloon catheter through the glottis and center it over the stenosis. Inflate the balloon to the target pressure while observing diameter, shape and position. Monitor pressure with the gauge on the inflation device and keep the proximal balloon end proximal to the stricture during inflation. The balloon provides controlled radial expansion over the stenotic area to maximize clinical outcome and reduce rupture risk.

Color-coding and Connectors
Luer-lock connectors are color-coded to correspond with the appropriate bar setting on the Aeris® inflation device gauge, reducing the risk of incorrect inflation.

Inflation Device for Aeris®

• Sterile
• Single use
• Color coding
• Syringe volume: 30 cc
• 50 cm extension tube

Reference / Packaging
2080-9030040-AR (inflation device reference shown on page)

Sizing Guide (Patient age vs Dilation goal)
Patient age | Dilation goal diameter of larynx (mm) | Dilation goal diameter of trachea (mm)
Premature < 30 weeks | | 5
Premature > 30 weeks | 5 | 6
Neonates | 6 | 7
1 Year | 6 | 7
2 Years | 7 | 8
4 Years | 8 | 9
6 Years | 8-9 | 9-10
8 Years | 8-9 | 10
10 Years | 10 | 10-12
12 Years | 10-12 | 12-14
14 Years | 12 | 12-14
16 Years | 12 | 14-16
Adult female | 12-14 | 14-16
Adult male | 14-16 | 16-18

Article Numbers — Dilation goal diameter (mm)
Art. No. | Dilation goal diameter (mm)
AR-0530 | 5
AR-0630 | 6
AR-0730 | 7
AR-0830 | 8
AR-0930 | 9
AR-1030 | 10
AR-1240 | 12
AR-1440 | 14
AR-1640 | 16
AR-1840 | 18

Balloon Sizes and Operating Pressures
Art.-No. | Balloon size (diameter x length) | Operating (maximum) pressure
AR-0530 | 5 mm x 30 mm | 17 bar
AR-0630 | 6 mm x 30 mm | 17 bar
AR-0730 | 7 mm x 30 mm | 17 bar
AR-0830 | 8 mm x 30 mm | 17 bar
AR-0930 | 9 mm x 30 mm | 17 bar
AR-1030 | 10 mm x 30 mm | 17 bar
AR-1240 | 12 mm x 40 mm | 10 bar
AR-1440 | 14 mm x 40 mm | 10 bar
AR-1640 | 16 mm x 40 mm | 10 bar
AR-1840 | 18 mm x 40 mm | 10 bar

Notes on Sizing
Selection must be based on clinical assessment by a qualified specialist. The sizing table is a general reference and does not replace professional examination. Sizes can be estimated using an endotracheal tube outer diameter: add 1 mm for the larynx and 2 mm for the trachea.

Specifications / Technical details

• Product name (commercial): Aeris®
• Product type: Balloon dilation catheter for airway dilation
• Design: Non-slip (bone-like shape) balloon with hubs at each end to prevent slippage
• Catheter lumen: Single lumen (fast inflation/deflation)
• Balloon size range: 5 mm to 18 mm (lengths 30 mm and 40 mm)
• Operating pressures: up to 17 bar for 5–10 mm balloons; up to 10 bar for 12–18 mm balloons
• Color-coded Luer-lock connectors to match inflation device bar settings
• Inflation device features: sterile, single use, 30 cc syringe volume, 50 cm extension tube
• Packaging: single packs for hospital inventory management
• Article numbers: AR-0530, AR-0630, AR-0730, AR-0830, AR-0930, AR-1030, AR-1240, AR-1440, AR-1640, AR-1840
