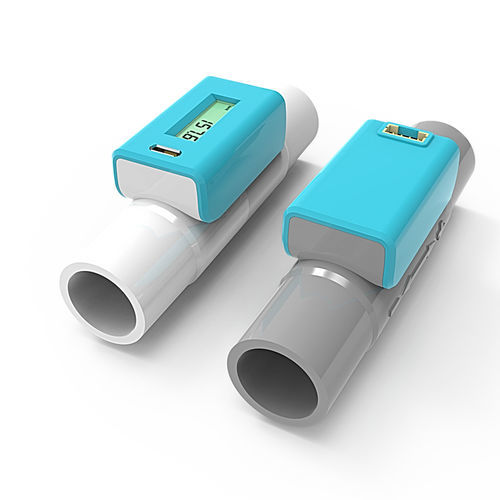

Air flow meter SFS500

for hospitalsintegratedportable

The sfs500 bidirectional flowmeter features an extremely broad operation range, high accuracy, low flow loss and fast response time. Nowadays the lifecycle of technical equipment has been shortened, and rapid adaptation of new technologies is of paramount importance for efficient business operation and rapid market response. Thanks to our adaptive manufacturing technologies and efficient calibration procedures we are able to satisfy custom needs even in small series. The measurement principle and communication protocol of our sensors can be flexibly configured, so they can easily be integrated into the interface of already existing systems. With micro-USB or JST connector, 5 VDC power supply and continuous communication our flow meter provides easy monitoring of the flow data. The sfs500 is suitable for measuring volumetric air flow rates in laboratories, medical and industrial environments. JST connector Measuring range + - 500 slm Relative accuracy + - 3% Flow resistance Low Connector JST Display No Operating voltage 5VDC Communication UART Additive manufacturing technology Individually calibrated USB connector Measuring range + -500 slm Relative accuracy + - 3% Flow resistance Low Connector Micro USB Display Yes Power supply voltage 5VDC Communication UART Additive manufacturing technology Individually calibrated
