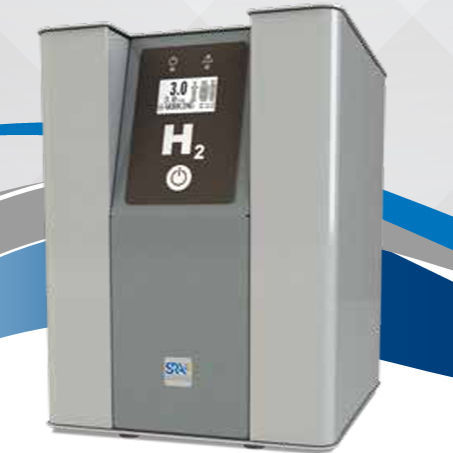

Gas chromatography hydrogen generator HG KUBE 260
floor-standingPEMhigh-purity

Gas chromatography hydrogen generator - HG KUBE 260 - SRA Instruments - floor-standing / PEM / high-purity
Gas chromatography hydrogen generator - HG KUBE 260 - SRA Instruments - floor-standing / PEM / high-purity
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Applications
for gas chromatography
Configuration
floor-standing
Technology
PEM
Other characteristics
high-purity
Output pressure

7 bar
(101.53 psi)

Gas purity

99.9996 %

Description

Equipped with PEM technology, flow-rates from 100 cc/min to 3300 cc/min and pressure up to 16 bars, with very high purity. High efficiency self-regenerating dryers operating at constant temperature reduce maintenance costs and ensure constant hydrogen purity. The HG KUBE is able to generate up to 260 cc/min of Hydrogen with purity better than 99.9996% and pressure up to 7 bar (101 psi). The HG KUBE includes a cell with polymeric membrane (PEM) using distilled water. No acid or alkaline solutions are involved. The innovative static drying system ensures the maximum grade of hydrogen purity, protects the GC thanks to it’s unique humidity safe guard, it is completely maintenance-free and allows continuous operation, 24 hours a day. The on-board CPU automatically check for internal leaks and constantly control the operating parameters to guarantee full safety. Up to 20 units can be connected in parallel mode using an external control box The touch-screen LCD interface provides simple and user-friendly management of all functions on the unit. • GC-FID • GC-NPD • GC-FPD • GC-PFPD • THA • Gas sensing • PEM cell technology • Flow rate up to 260 cc/min • Pressure up to 7 bar (101 psi) • RS-232 port standard • Purity: 99.9996% • Static dryer no maintenance • Safety routine and self monitoring • Reduced foot print • Smart humidity safe guard (patented) • High pressure GLS electronically controlled (patented)
